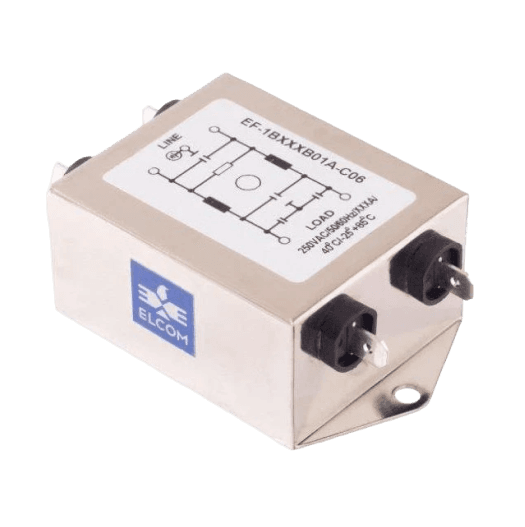

EC06
EC06
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Approval
CE, CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC06 Filter
Features
of
EC06
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance
All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Filters available in medical version without capacitor to earth.
Benefits
Benefits EC06
Benefits
EC06
- General purpose filters with low leakage current for safety critical application.
- With surge suppressor filters also available.
- Various terminal options are available
- High reliable.
- Applications - Consumer product ,Defence application, Medical equipment, Industrial application , Automotive application ,Weighting Machines , Printing Machinery , Electrical equipment application, Office automation equipment.
Download PDF
EC06-Series-1
654 KB
