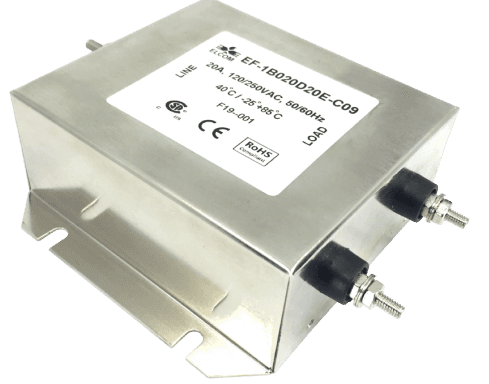

EC09

Specification
certiicon1
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards.

  • Approval

    CSA, CE, ROHS

Specification
starIcon

Technical
Spacfication

Parameters
Specification
Operating voltage
120/250 VAC
Current rating
10A-60A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approval

Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features

Features
of
EC09
Filter

  • Filters available in single stage and double stage.

  • All filters provide high attenuation performance.

  • Two stage filters designed for noisy application requiring excellent filter performance.

  • Chassis mountable filter in fabricated metal can.

  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection.

  • All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards.

Benefits

Benefits
of
EC09
Filter

  • Filters available in medical version without capacitor to earth.
  • General purpose filters with low leakage current for safety critical application.
  • Various terminal options are available.
  • Application - Consumer product , Defence equipment, Medical equipment, Industrial application, Automotive application, Toggle machines, UPS/Inverter, Electrical equipment application, Office automation equipment.
Download PDF
PDF
Elcom EC09 Data Sheet
782 KB
