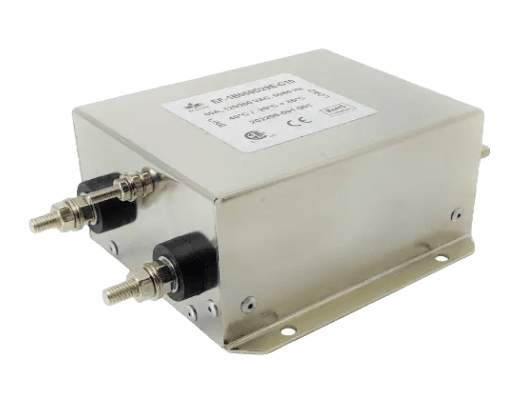

EC10
EC10
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CE, CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
50A-60A
Frequency
50/60Hz
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC10 Single Phase Filter
Features
of
EC10
Single
Phase
Filter
Filters available in single stage and double stage.
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
Chassis mountable filter in fabricated metal can.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Filters available in medical version without capacitor to earth.
Benefits
Benefits Of EC10 Single Phase Filter
Benefits
Of
EC10
Single
Phase
Filter
- General purpose filters with low leakage current for safety critical application.
- High reliable.
- With surge suppressor filters also available.
- Various terminal options are available.
- Application: Medical equipment, Industrial application, Automotive application, Audio video products, Power supplies. Electrical equipment application, UPS/inverter
Download PDF
Elcom EC10 Data Sheet
563 KB
