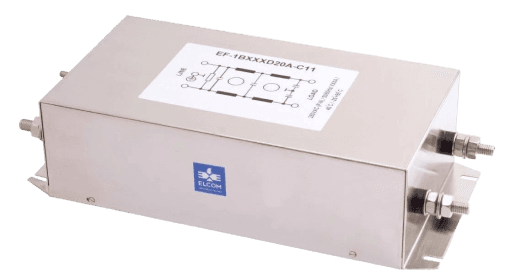

EC11
EC11
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
80A-150A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features Of EC11 Filter
Features
Of
EC11
Filter
Filters available in single stage and double stage.
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
Chassis mountable filter in fabricated metal can.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Filters available in medical version without capacitor to earth.
Benefits
Benefits Of EC11 Filter
Benefits
Of
EC11
Filter
- General purpose filters with low leakage current for safety critical application.
- With surge suppressor filters also available.
- Various terminal options are available.
- Application: Defence application, Medical equipment, Industrial application, UPS, Solar inverter, Electrical equipment application
Download PDF
Elcom EC11 Data Sheet
564 KB
