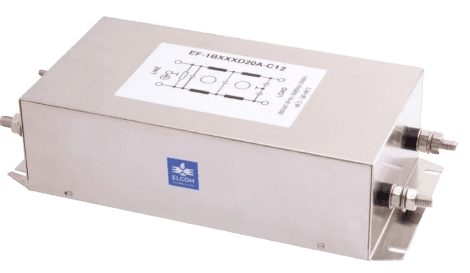

EC12
EC12
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
180A-250A
Frequency
50/60Hz
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC12 Filter
Features
of
EC12
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Benefits
Benefits of EC12
Benefits
of
EC12
- High reliable
- Chassis mountable filter in fabricated metal can.
- Filters available in medical version without capacitor to earth.
- General purpose filters with low leakage current for safety critical application.
- With surge suppressor filters also available.
- Application : Defence application, Medical equipment, Industrial application, UPS, Solar inverter, Electrical equipment application
Download PDF
ELcom EC12 Data Sheet
448 KB
