EC21
EC21
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
300A-650A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE
Yes
ROHS
Yes
Features

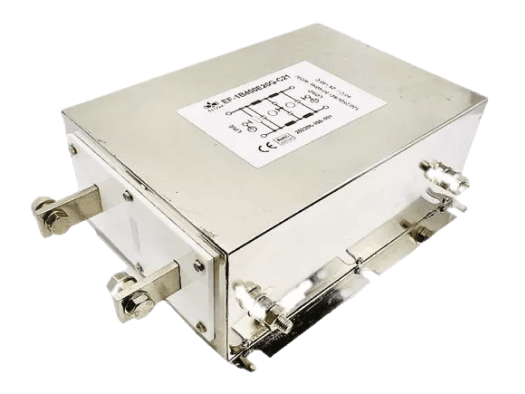

Features of EC21 Filter
Features
of
EC21
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
Chassis mountable filter in fabricated metal can.
Benefits
Benefits of EC21
Benefits
of
EC21
- High reliable
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- Various terminal options are available.
- Application: Industrial application, Automotive application, Audio video products, Power supplies., Electrical equipment application, UPS/inverter.
Download PDF
Elcom EC21 Data Sheet
360 KB
