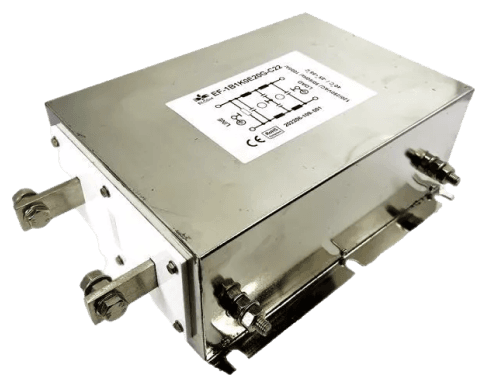

EC22
EC22
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CE, ROHS
Specification
Technical Specfication
Technical
Specfication
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
700A-1000A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE
Yes
ROHS
Yes
Features
Features of EC22 Filter
Features
of
EC22
Filter
Filters available in single stage and double stage
Chassis mountable filter in fabricated metal can.
Two stage filters designed for noisy application requiring excellent filter performance.
All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards.
Benefits
Benefits of EC22
Benefits
of
EC22
- All filters provide high attenuation performance.
- High reliable
- Chassis mountable filter in fabricated metal can.
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- Application: Industrial application, Automotive application, Audio video products, Power supplies, Electrical equipment application, UPS/inverter
Download PDF
Elcom EC22 Data Sheet
369 KB
