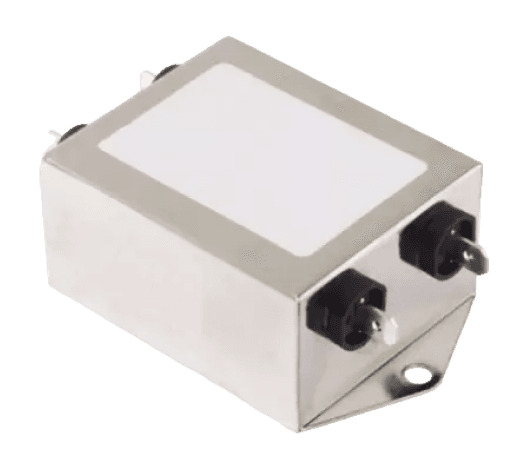

EC30
EC30
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CE, ROHS, CSA
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-30A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC30 Filter
Features
of
EC30
Filter
Filters available in single stage and double stage
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
General purpose filters with low leakage current for safety critical application.
With surge suppressor filters also available.
Benefits
Benefits of EC30
Benefits
of
EC30
- High reliable
- Easy and fast chassis mountable filter with compact size.
- Filters available in medical version without capacitor to earth.
- Various terminal options are available
- Application: Consumer product, Defence application, Medical equipment, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment
Download PDF
Elcom EC30 Data Sheet
679 KB
