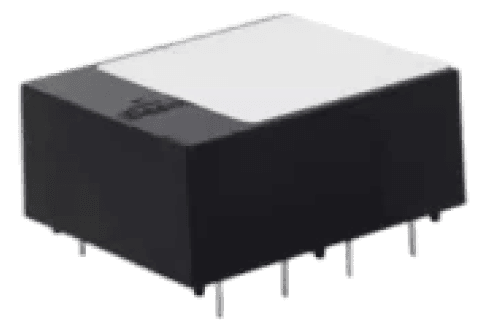

EA04-PCB MOUNT FILTER
EA04-PCB
MOUNT
FILTER
Specification
- Refence Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
250/440 VAC
Current rating
1A - 10A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 2121VDC (applicable excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE Marking
Yes
Features
Features of EA04-PCB Mount Filter
Features
of
EA04-PCB
Mount
Filter
All filters provide high attenuation performance.
Compact PCB-mountable design.
Input and output connection through soldering pins
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits of EA04-PCB Mount Filter
Benefits
of
EA04-PCB
Mount
Filter
- Plastic housing with good aesthetic
- Single Stage & High reliable.
- Filters available in medical version without capacitor to earth.
- With surge suppressor filters also available.
- Cost effective solution.
- Application: Electrical and electronic equipment, SMPS, Test & measurement equipment, Small to medium-sized machines and household equipment, Office automation equipment
