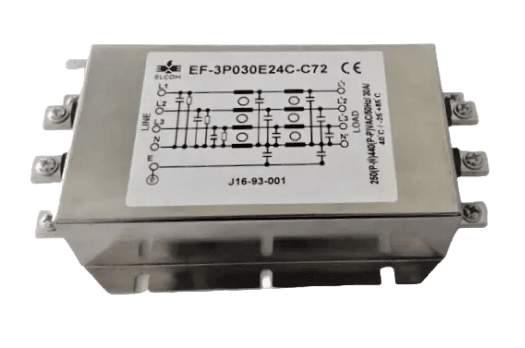

EC72
EC72
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards
- Approval
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
250VAC(P-N)/440VAC(P-P)
Current rating
1A-40A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC72 Filter
Features
of
EC72
Filter
Filters available in double stage
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Benefits
Benefits of EC72 Filter
Benefits
of
EC72
Filter
- Easy and fast chassis mountable filter with compact size.
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- With surge suppressor filters also available.
- Various terminal options are available
- Application: Consumer product, Defence application, Medical equipment, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment
Download PDF
Elcom EC72 Filter Data Sheet
470 KB
