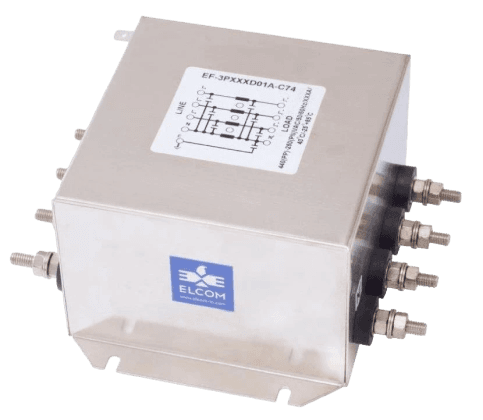

EC74
EC74
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approvals
CSA, CE, ROHS
Specification
Technical Specifcation
Technical
Specifcation
Parameters
Specification
Operating voltage
250VAC(P-N)/440VAC(P-P)
Current rating
50A - 80A
Frequency
50/60Hz
High potential test voltage
P -> E 1500VAC P -> N 2121VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC74 Filter
Features
of
EC74
Filter
Filters available in single stage
All filters provide high attenuation performance.
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards.
Chassis mountable filter in fabricated metal can.
Benefits
Benefits of EC74
Benefits
of
EC74
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- General purpose filters with low leakage current for safety critical application.
- With surge suppressor filters also available.
- Various terminal options are available.
- Application: Defence application, Industrial application, UPS, Inverters and converters, Electrical equipment application, Laser cutting tools, Test and measurement instruments
Download PDF
Elcom EC74 Filter Data Sheet
341 KB
