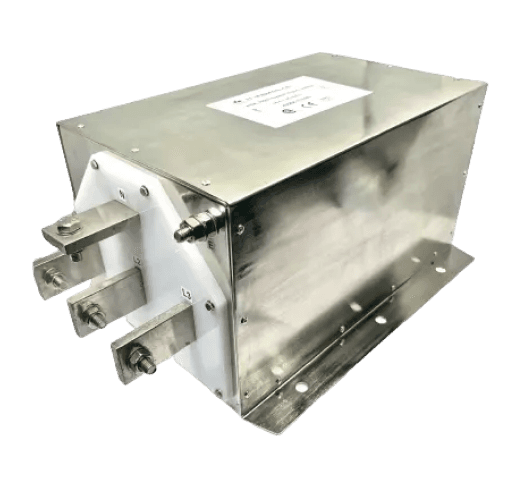

EC83
EC83
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CSA, CE, ROHS
Specification
Technical Specifications
Technical
Specifications
Parameters
Specification
Operating voltage
250VAC(P-N)/440VAC(P-P)
Current rating
300A - 650A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 2121VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
Safety Approval
Safety
Approval
Parameters
Specification
CE marking
Yes
cCSAus
Yes
Features
Features of EC83 Filter
Features
of
EC83
Filter
Filters available in single stage
All filters provide high attenuation performance.
Chassis mountable filter in fabricated metal can.
General purpose filters with low leakage current for safety critical application.
Benefits
Benefits of EC83
Benefits
of
EC83
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- With surge suppressor filters also available.
- Various terminal options are available.
- Application: Defence application, Industrial application, UPS, Inverters and converters, Electrical equipment application, Laser cutting tools, Test and measurement instruments
Download PDF
Elcom EC83 Data Sheet
265 KB
