Products>EMI EMC Products>Three Phase Filter with Neutral>EC89
esrseries
  • image0

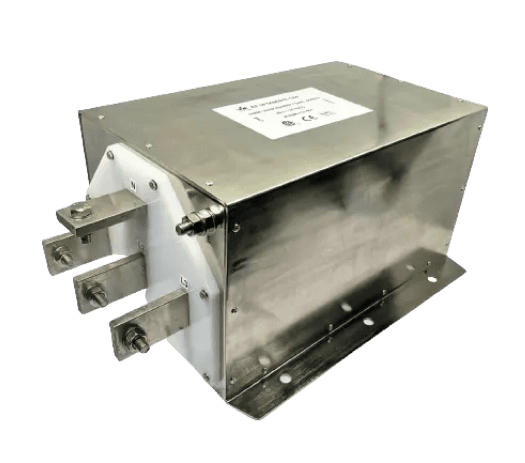

EC89

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards.

  • Approval

    CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
250VAC(P-N)/440VAC(P-P)
Current rating
1100A - 1500A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 2121VDC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
starIcon

Safety
Approvel

Parameters
Specification
CE Marking
Yes
Features

Features
of
EC89
Filter

  • Filters available in single & double stage

  • All filters provide high attenuation performance

  • All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards

  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection.

Benefits

Benefits
of
EC89
Filter

  • High reliable
  • Chassis mountable filter in fabricated metal can.
  • Application- Defence application, Industrial application, UPS, Inverters and converters, Electrical equipment application, Laser cutting tools, Test and measurement instruments
Download PDF
PDF
Elcom EC89 Filter Data Sheet
293 KB
download
Similar products

The
team
that
drives
innovation
and
success

SHOW MORE
innoImg

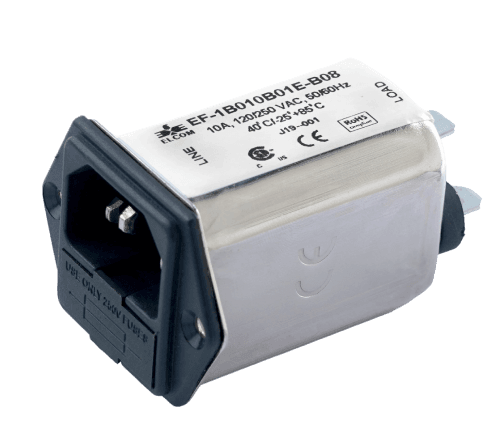

EB08
innoImg

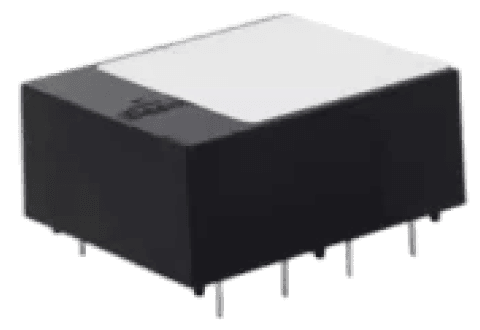

EA04-PCB MOUNT FILTER
innoImg

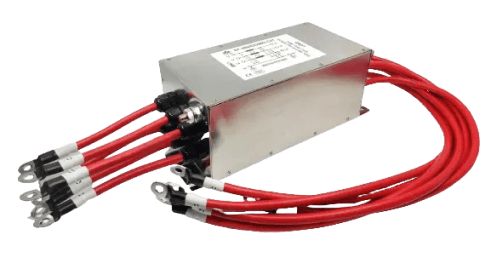

EC51
