Products>EMI EMC Products>Three Phase Filter with Neutral>EC90
esrseries
  • image0

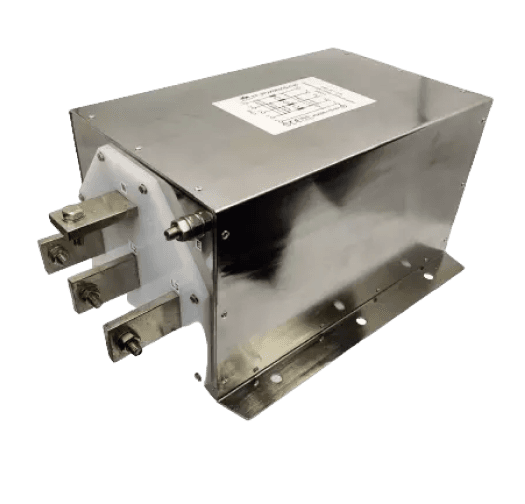

EC90

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards

  • Approval

    CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
250VAC(P-N)/440VAC(P-P)
Current rating
1600A - 2000A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P -> N 2121VDC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
starIcon

Safety
Approvel

Parameters
Specification
CE Marking
Yes
Features

Features
of
EC90
Filter

  • Filters available in single stage

  • All filters provide high attenuation performance.

  • All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards.

  • Chassis mountable filter in fabricated metal can.

Benefits

Benefits
of
EC90
Filter

  • High reliable
  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
  • Application: Defence application, Industrial application, UPS, Inverters and converters, Electrical equipment application, Laser cutting tools, Test and measurement instruments
Download PDF
PDF
Elcom EC90 Filter Data Sheet
262 KB
