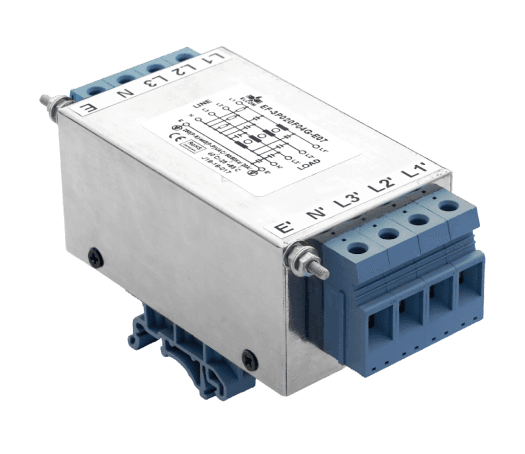

EE07 – Din Rail Mount Filter
EE07
–
Din
Rail
Mount
Filter
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Approval
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
250VAC(P-N)/440VAC(P-P)
Current rating
1A - 40A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P -> P 2121VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE Marking
Yes
Features
Features of EE07 Filter
Features
of
EE07
Filter
Filters available in single stage
All filters provide high attenuation performance.
All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards.
Easy and fast din rail mounting filter with compact size
Benefits
Benefits of EE07
Benefits
of
EE07
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection
- Filters available in medical version without capacitor to earth.
- General purpose filters with low leakage current for safety critical application
- With surge suppressor filters also available.
- Application: Consumer product, Defence application, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment
