Products>EMI EMC Products>Three Phase Filter>EC36
esrseries
  • image0

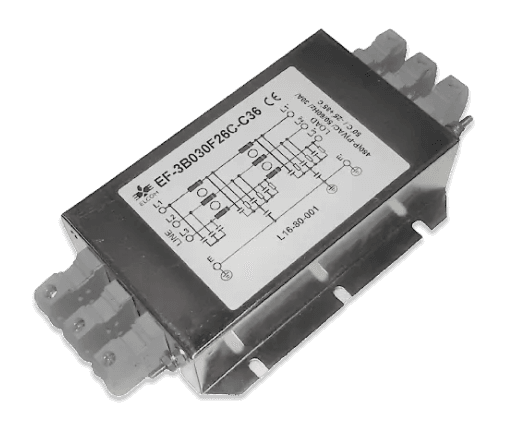

EC36

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards.

  • Approval

    CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
440VAC
Current rating
15A - 40A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
starIcon

Safety
Approval

Parameters
Specification
CE
Yes
ROHS
Yes
Features

Features
of
EC36
Filter

  • Filters available in double stage

  • All filters provide high attenuation performance.

  • Two stage filters designed for noisy application requiring excellent filter performance.

  • ׀ CRCA metal can with nickel plating provides good aesthetic and corrosion protection

Benefits

Benefits
of
EC36

  • Easy and fast chassis mountable filter with compact size.
  • High reliable.
  • With surge suppressor filters also available.
  • Various terminal options are available.
  • Application: Consumer product, Defence application, Industrial application, Automotive application, Printing Machinery, Electrical equipment application
Download PDF
PDF
Elcom EC36 Filter Data Sheet
589 KB
download
