EC39
EC39
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
100A - 150A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P -> P 2121VDC (applicable for general purpose filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (P→E)
Operating temperature
40°c /-25°c +85°C
Safety Approval
Safety
Approval
Parameters
Specification
CSA
Yes
CE
Yes
ROHS
Yes
Features

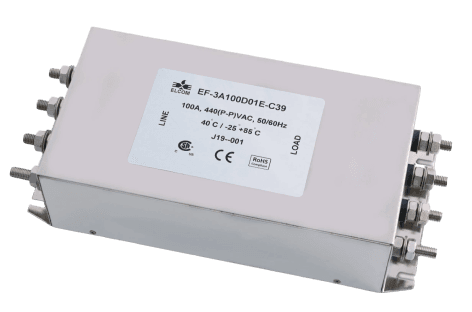

Features of EC39 Three Phase Filter
Features
of
EC39
Three
Phase
Filter
All filters provide high attenuation performance.
Chassis mountable filter in fabricated metal can.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
General purpose filter with low leakage current for safety critical application
Benefits
Benefits of EC39 Filter
Benefits
of
EC39
Filter
- With surge suppressor filters also available.
- Various terminal options are available.
- High reliable
- Application : Electrical and electronic equipment, Test & measurement equipment, 3 Phase motor drive, Inverters and converters, Industrial automation application UPS, SMPS, Laser cutting tools, Packaging and drilling machine, Printing machine
Download PDF
Elcom EC39 Filter
414 KB
