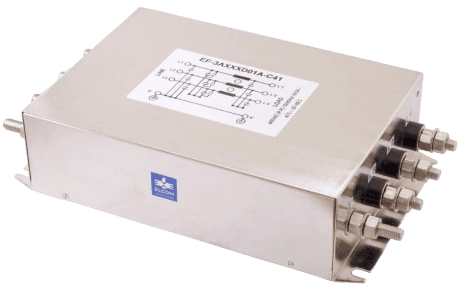

EC41
EC41
Specification
- Refence Standard
EN60939-3:2015 & EN60939- 2:2005 standards
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
180A - 250A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P -> P 2121VDC (applicable for general purpose filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (P→E)
Operating temperature
40°c /-25°c +85°C
Approval
Approval
Parameters
Specification
CSA
Yes
CE
Yes
Features
Features of EC41 Filter
Features
of
EC41
Filter
All filters provide high attenuation performance.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
General purpose filter with low leakage current for safety critical application.
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards
Benefits
Benefits of EC41
Benefits
of
EC41
- Single stage and High reliable.
- Chassis mountable filter in fabricated metal can.
- With surge suppressor filters also available.
- Various terminal options are available
- Application: Electrical and electronic equipment, Test & measurement equipment, 3 Phase motor drive, Inverters and converters, Industrial automation application UPS, SMPS, Laser cutting tools, Packaging and drilling machine, Printing machine
Download PDF
Elcom EC41 Data Sheet
315 KB
