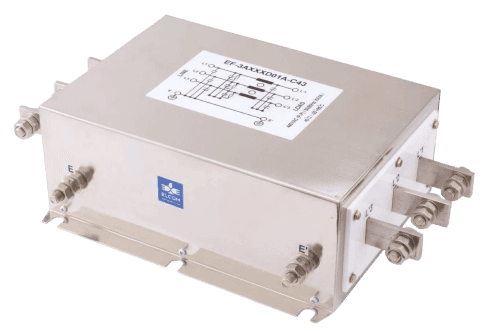

EC43

Specification
certiicon1
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards

  • Approval

    CSA, CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
300A - 450A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 2121VDC (applicable for general purpose filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (P→E)
Operating temperature
40°c /-25°c +85°C
starIcon

Approval

Parameters
Specification
CSA
Yes
CE
Yes
Features

Features
of
EC43
Filter

  • All filters provide high attenuation performance.

  • Chassis mountable filter in fabricated metal can.

  • All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards

  • General purpose filter with low leakage current for safety critical application

Benefits

Benefits
of
EC43
Filter

  • Single stage and High reliable.
  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection
  • Application : Electrical and electronic equipment, Test & measurement equipment, 3 Phase motor drive, Inverters and converters, Industrial automation application UPS, SMPS, Laser cutting tools, Packaging and drilling machine ׀ Printing machine

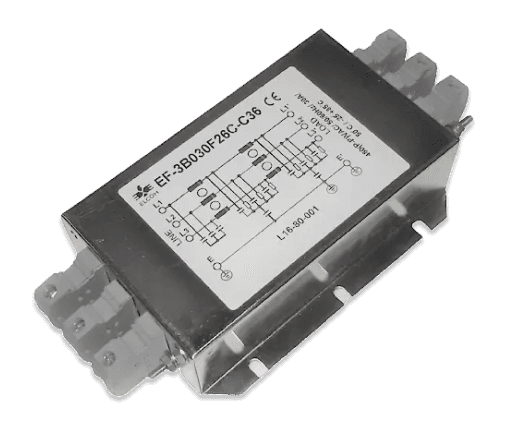

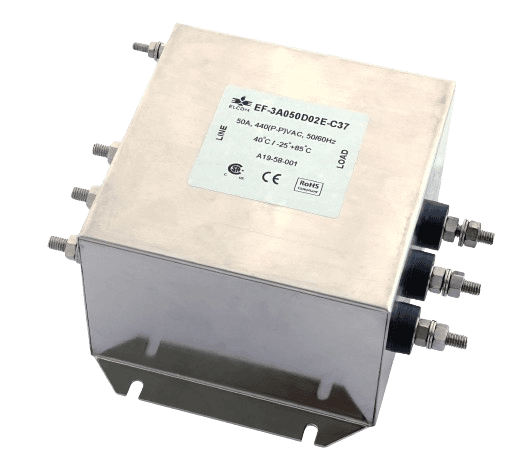

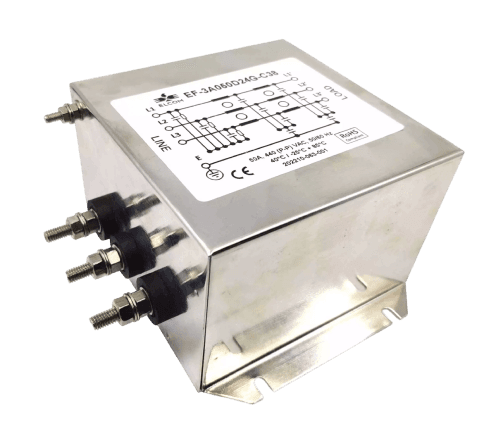

Similar products
