EC44
EC44
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards
- Approval
CE, CSA, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
500A - 650A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P -> N 2121VDC (applicable for general purpose filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (P→E)
Operating temperature
40°c /-25°c +85°C
Safety Approval
Safety
Approval
Parameters
Specification
CE
Yes
CSA
Yes
Features

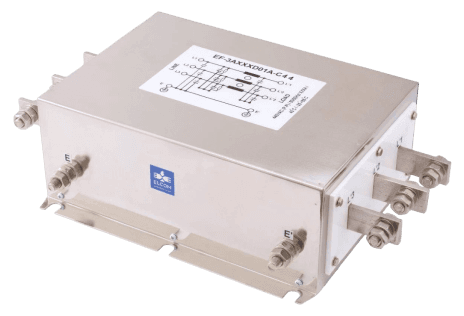

Features of EC44 Three Phase Filter
Features
of
EC44
Three
Phase
Filter
All filters provide high attenuation performance.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
All filters compliance to EN60939-3:2015 & EN60939-2:2005 standards
Single stage.
Benefits
Benefits of EC44 Three Phase Filter
Benefits
of
EC44
Three
Phase
Filter
- High reliable
- General purpose filter with low leakage current for safety critical application.
- Application : Electrical and electronic equipment, Test & measurement equipment, 3 Phase motor drive, Inverters and converters, Industrial automation application UPS, SMPS, Laser cutting tools, Packaging and drilling machine, Printing machine
Download PDF
Elcom EC44 Data Sheet
286 KB
