Products>EMI EMC Products>Three Phase Filter>EC47
esrseries
  • image0

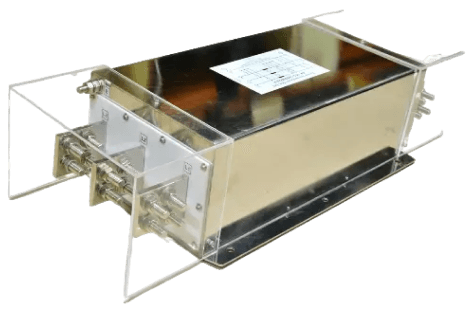

EC47

Request a Quote
Specification
certiicon1
certiicon1
certiicon1
  • Reference Standard

    EN60939-3:2015 & EN60939-2:2005 standards.

  • Approval

    CSA, CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
1100A – 1600A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> P 2121VDC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
starIcon

Approval

Parameters
Specification
CE
Yes
CSA
Yes
ROHS
Yes
Features

Features
of
EC47
Filter

  • Filters available in single stage.

  • All filters provide high attenuation performance.

  • Two stage filters designed for noisy application requiring excellent filter performance

  • CRCA metal can with nickel plating provides good aesthetic and corrosion protection.

Benefits

Benefits
of
EC47

  • Easy and fast chassis mountable filter with compact size.
  • High reliable
  • Application : Consumer product, Defence application, Industrial application, Automotive application, Weighting Machines. Printing Machinery, Electrical equipment application
Download PDF
PDF
Elcom EC47 Data Sheet
330 KB
