Products>EMI EMC Products>Three Phase Filter>EC48
esrseries
  • image0

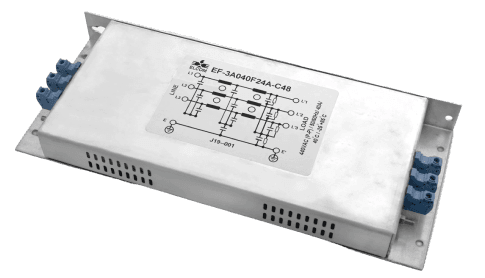

EC48

Request a Quote
Specification
certiicon1
certiicon1
certiicon1
  • Refence Standard

    EN60939-3:2015 & EN60939- 2:2005 standards.

  • Approval

    CE, ROHS

Specification
starIcon

Technical
Specification

Parameters
Specification
Operating voltage
440 VAC
Current rating
1A - 40A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
starIcon

Approval

Parameters
Specification
CE
Yes
ROHS
Yes
Features

Features
of
EC48
Filter

  • Filters available in single stage and double stage

  • All filters provide high attenuation performance.

  • Two stage filters designed for noisy application requiring excellent filter performance.

  • Aluminum metal casing provides good aesthetic and corrosion protection.

Bnefits

Benefits
of
EC48
Filter

  • Chassis mountable filter in fabricated metal can.
  • High reliable
  • Filters available in medical version without capacitor to earth
  • With surge suppressor filters also available.
  • Application: Consumer product, Defence application, Industrial application, Automotive application, Printing Machinery, Electrical equipment application
Download PDF
PDF
Elcom EC48 Filter Data Sheet
