Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
80A - 150A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P ->P 2121VDC (applicable for general purpose filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (P→E)
Operating temperature
40°c /-25°c +85°c
Safety Approval
Safety
Approval
Parameters
Specification
CE Marking
Yes
Features

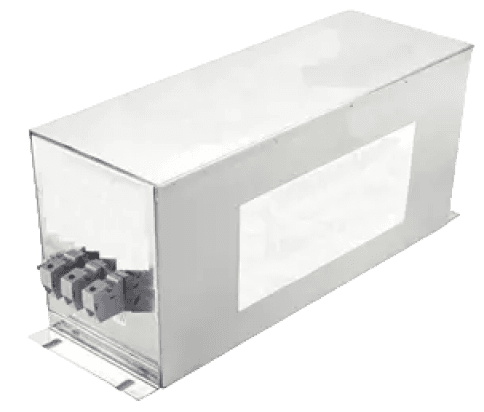

Features of EC55 Filter
Features
of
EC55
Filter
Filters available in Single stage & double stage.
All filters provide high attenuation performance.
Two stage filters designed for noisy application requiring excellent filter performance.
Easy and fast chassis mountable filter with compact size.
Benefits
Benefits of EC55 Filter
Benefits
of
EC55
Filter
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
- General purpose filters with low leakage current for safety critical application.
- Various terminal options are available.
- Application: Defence application, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment
Download PDF
PNG
Elcom EC55 Filter Data Sheet
74 KB
