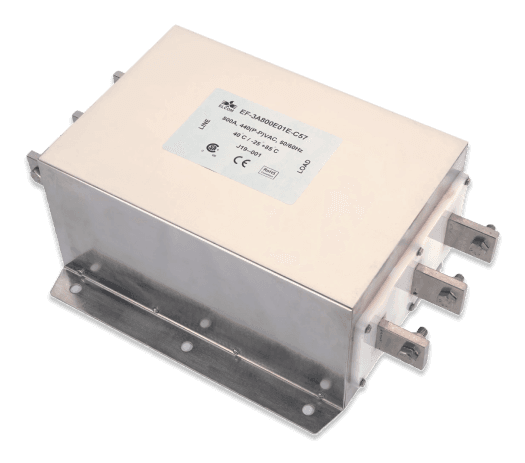

EC57
EC57
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards
- Approval
CSA, CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
440VAC (P-P)
Current rating
700A-1000A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 2121VDC (applicable for general purpose filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (P→E)
Operating temperature
40°c /-25°c +85°C
Approval
Approval
Parameters
Specification
CE Marking
Yes
CSA Markeing
Yes
Features
Features of EC57 Filter
Features
of
EC57
Filter
All filters provide high attenuation performance.
Single stage and High reliable.
Chassis mountable filter in fabricated metal can
All filters compliance to EN60939-3:2015 & EN60939- 2:2005 standards
Benefits
Benefits of EC57
Benefits
of
EC57
- CRCA metal can with nickel plating provides good aesthetic and corrosion protection
- General purpose filter with low leakage current for safety critical application.
- Application: Electrical and electronic equipment, Test & measurement equipment, 3 Phase motor drive, Inverters and converters, Industrial automation application UPS, SMPS, Laser cutting tools, Packaging and drilling machine, Printing machine
Download PDF
Elcom EC57 Data Sheet
322 KB
