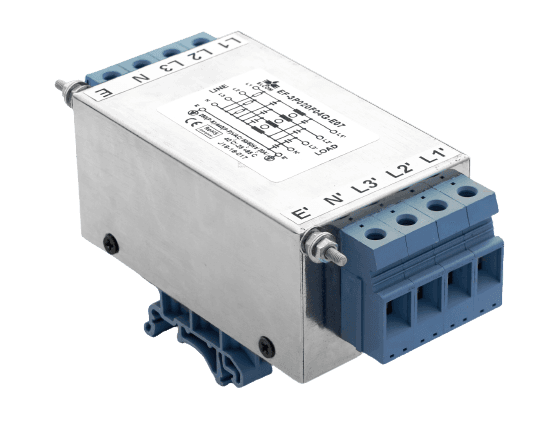

EE07- Din Rail Mount
EE07-
Din
Rail
Mount
Specification
- Reference Standard
EN60939-3:2015 & EN60939- 2:2005 standards.
- Approval
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
440VAC
Current rating
1A - 40A
Frequency
50/60Hz
Voltage drop
1 Volt max
High potential test voltage
P -> E 1500VAC P ->P 2121VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°C
Safety Approval
Safety
Approval
Parameters
Specification
CE Marking
Yes
Features
Features of EE07- Din Rail Mount Filter
Features
of
EE07-
Din
Rail
Mount
Filter
Filters available in single stage
All filters provide high attenuation performance.
Easy and fast din rail mounting filter with compact size.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection.
Benefits
Benefits of EE07- Din Rail Mount Filter
Benefits
of
EE07-
Din
Rail
Mount
Filter
- High reliable
- Filters available in medical version without capacitor to earth.
- General purpose filters with low leakage current for safety critical application.
- With surge suppressor filters also available.
- Application: Consumer product, Defence application, Medical equipment, Industrial application, Automotive application, Weighting Machines, Printing Machinery, Electrical equipment application, Office automation equipment
Download PDF
Elcom EE07- Din Rail Mount Filter Data Sheet
