EPC-16 Series
EPC-16
Series
Specification
- Reference Standard
IS-1293, IEC-60884-1, IEC-60799, IES-60227, IEC-60320-1
- Compliance Marking
CE, ROHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

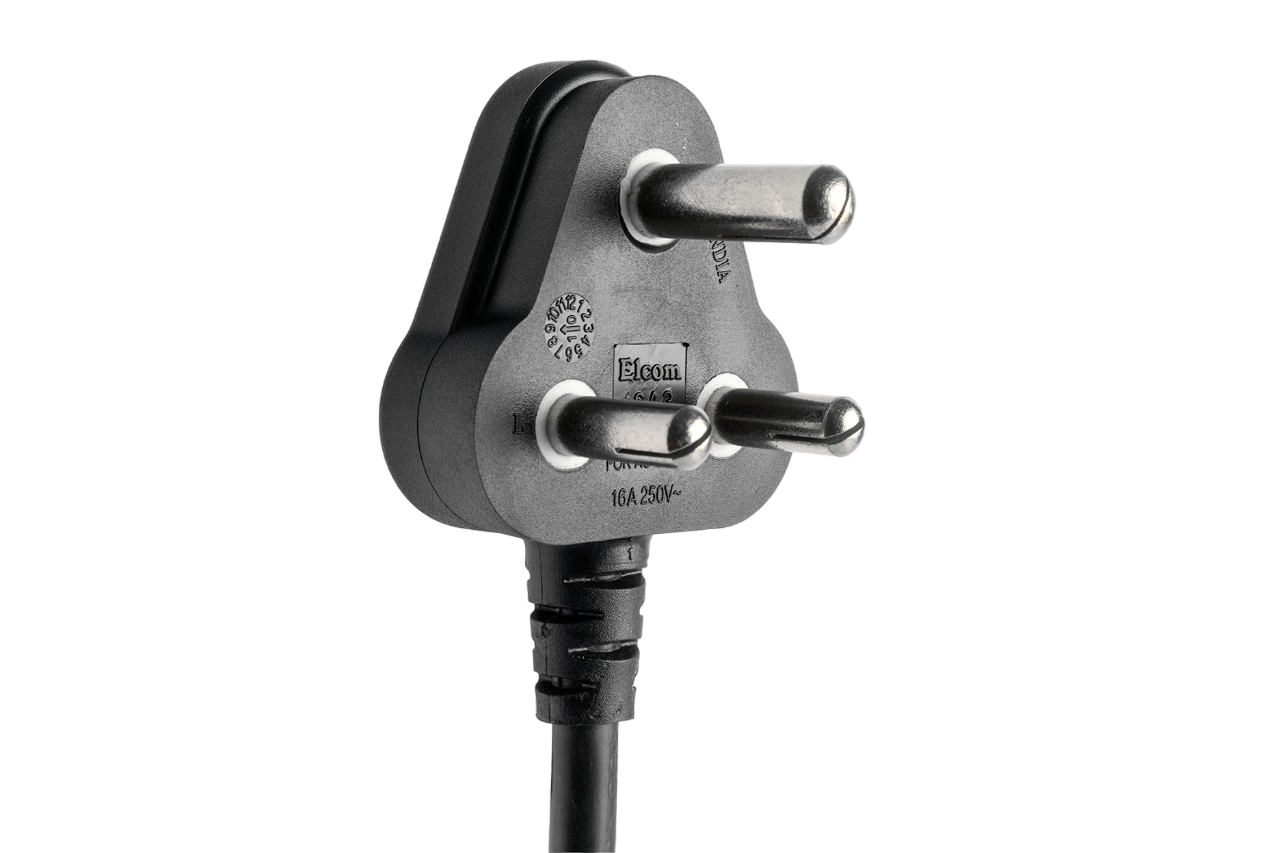

Three Pin Integrally Moulded Plug
V/A Rating
16A Indian Plug -16 AMP,250 V AC, C20-16 AMP,250 V AC, C19-16 AMP,250 V AC, C13- 10 AMP,250 V AC -16 AMP,250 V AC
Insulation Resistance at 500 VDC
100 M Ohms Min.
H.V.Break Down Test (1-Minute)
1.5 KV AC
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C TO 70°C
Length (L), Meters
As per Requirement, Standard=1.5
Material
Material
Parameters
Specification
Cable
PVC
Conductors
Copper
Conductor (Size)
1.50 sq. mm.
Contacts
Brass, Nickel Plated
Reference Standards/Approvals
Reference
Standards/Approvals
Parameters
Specification
Reference Standards
IS-1293, IEC-60884-1, IEC-60799, IES-60227, IEC-60320-1
Compliance Marking
CE, RoHS,ISI ( On Request )
Data Sheet
Elcom EPC-16 Series Data Sheet
633 KB
