EPC1314R-Series
EPC1314R-Series
Specification
- Reference Standards
IEC-60320-1,IEC-60320-3,IEC-60799
- Compliance Marking
CE, ROHS
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

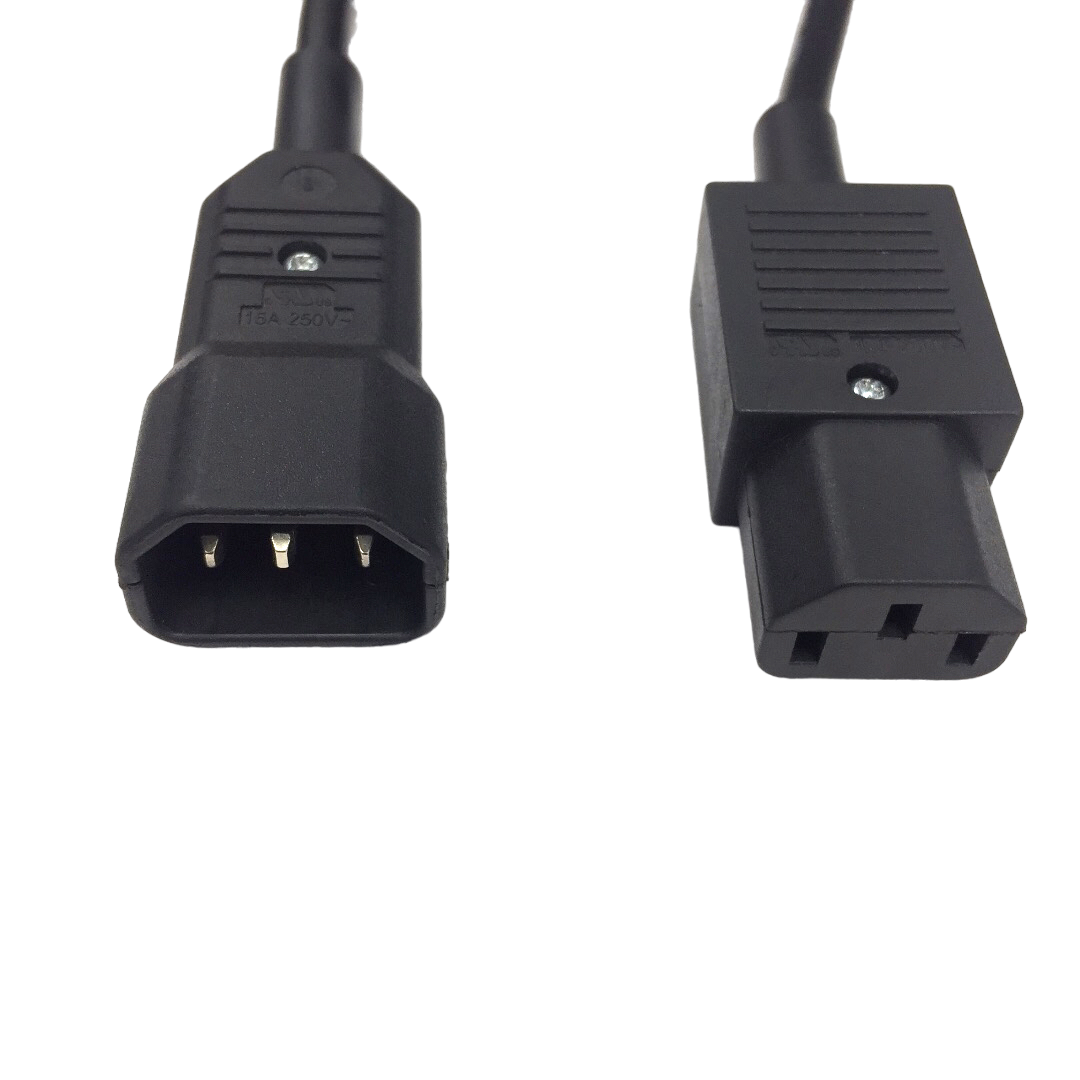

Mains Cord with IEC connector combination
Combination
IEC C13 & C14
V/A Rating
10Amp 250V AC (Max.)
Insulation Resistance at 500 V DC
100 M Ohms Min.
H.V.Break Down Test (For 1-Minute)
1.5 KV AC.
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Permissible Temp. (With/Without Load)
-20°C TO 70°C
Length (L), Meters
As per Requirement
Material
Material
Parameters
Specification
Inlet & Outlet Body
Polyamide
Cable & Sleeve
PVC
Conductors
Copper
Conductor (Size)
As per Requirement
Contacts
Brass, Nickel Plated
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standards
IEC-60320-1,IEC-60320-3,IEC-60799
Compliance Marking
CE, RoHS (On request,Please refer ordering code for suffix)
Data Sheet
Elcom EPC-1314-R-Series 2 Data Sheet
488 KB
