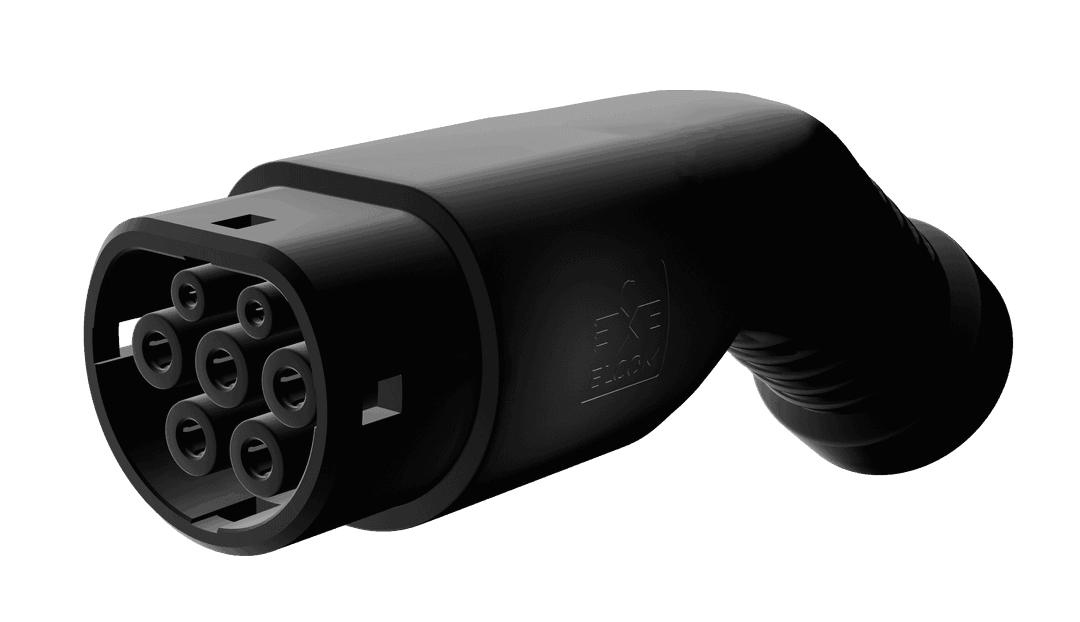

Type 2 Connector 63 A 3 Phase
Type
2
Connector
63
A
3
Phase
- Reference Standard
IEC 62196-1, IEC 62196-2, IEC 62893, IS-17017-1, IS 17017-2
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type
Vehicle Connector (IIe)
Rated Current
63A
Rated Voltage
480V AC
Signal Rating
2A 30V DC (For PP & CP)
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Insulation Resistance at DC 500V
>1000 MΩ
Contact Resistance
0.5mΩ Max
H.V.Break Down Test
2KV
Mechanical Life
>10000 Cycles
Insertion Force
<100 N
Withdrawal Force
<100 N
Permissible Temp. With/Without Load
-30°C TO 50°C
Protection Degree
Mating- IP44 & Unmating -IP55(With Protection Cap)
Material
Material
Parameters
Specification
Cable
Thermo Plastic
Outer Sheath
EVM-1/ EVM-2/EVM-3
Cable Sheath Color
Black Color
Conductors
Bare Copper, Class 5
Shell Material
Thermoplastic
Cable Core
Cable
Core
Parameters
Specification
Live , Neutral,CP
As per table of Cable details
Earth,PP
As per table of Cable details
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 62196-1, IEC 62196-2, IEC 62893
