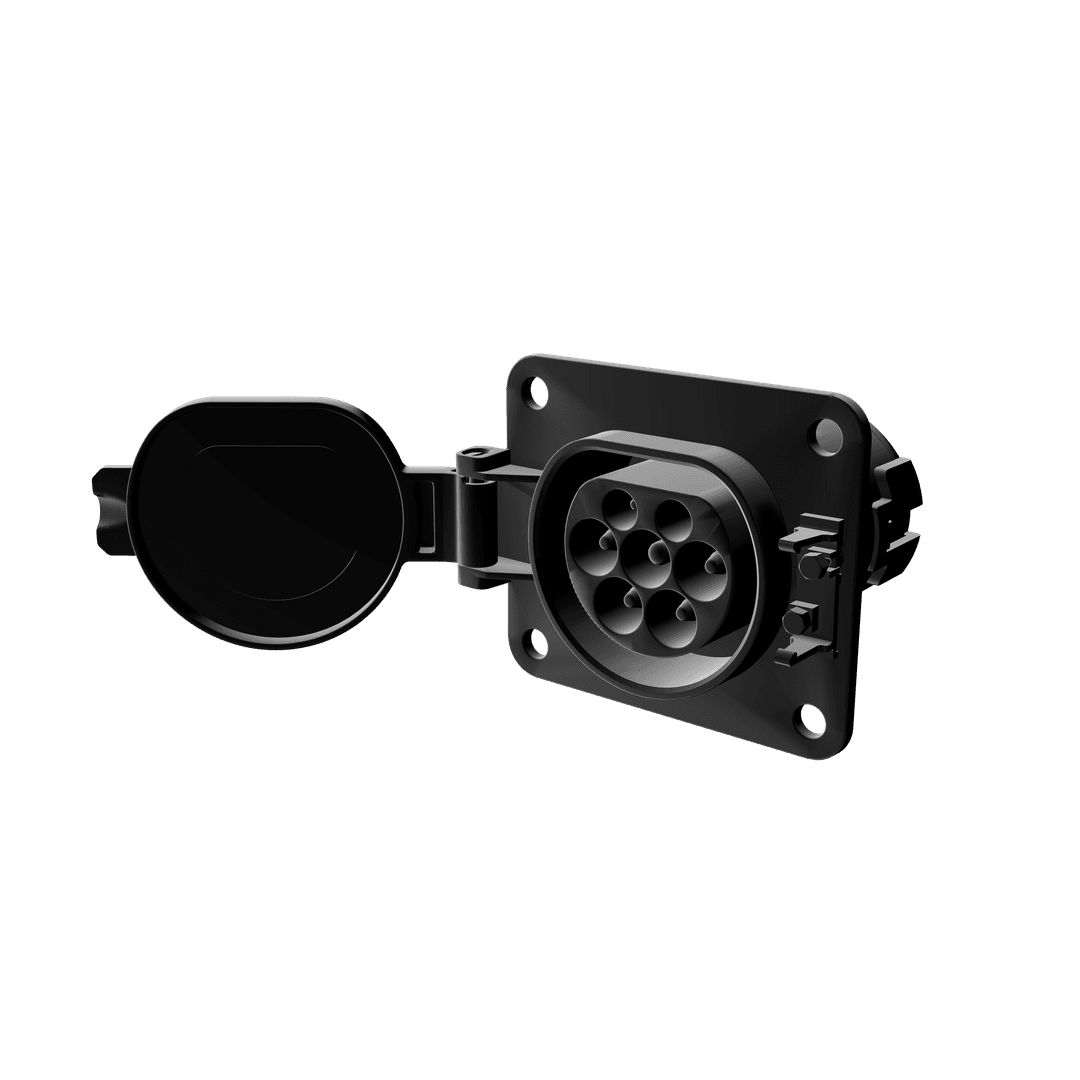

Type 2 Inlet 16 A to 63 A Series
Type
2
Inlet
16
A
to
63
A
Series
- Reference Standard
IEC 62196-1, IEC 62196-2, IEC 62893, IS-17017-1, IS 17017-2
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type
Vehicle Inlet
Rated Current
16A, 32A, 63A
Rated Voltage
250 V AC/480 V AC
Signal Rating
2A 30V DC(
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Insulation Resistance at DC 500V
>1000 MΩ
Contact Resistance
0.5mΩ Max
H.V.Break Down Test
2 KV
Mechanical Life
>10000 Cycles
Insertion Force
<100 N
Withdrawal Force
<100 N
Permissible Temp. With/Without Load
-30 ° to 50 ° C
Protection Degree
Mating- IP44 & Unmating -IP55(With Protection Cap)
Material
Material
Parameters
Specification
Outer Sheath
EVM-1/EVM-2/EVM-3
Conductors
Bare Copper, class 5
Wire
Wire
Parameters
Specification
Live , Neutral,CP
As per table of Cable details
Earth,PP
As per table of Cable details
Locking Actuator
Locking
Actuator
Parameters
Specification
Rating (Max
3A 12V DC
Motor Current for Locking
0.2A
Insertion life cycle
>10,000 Load Cycles
Locking Rod Holding Force
≥ 75N
Locking Rod Fracture Force
≥ 300N
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 62196-1, IEC 62196-2, IEC 62893, IS-17017-1, IS 17017-2
Download PDF
Type 2 Inlet 16 A to 63 A Series Data Sheet
618 KB
