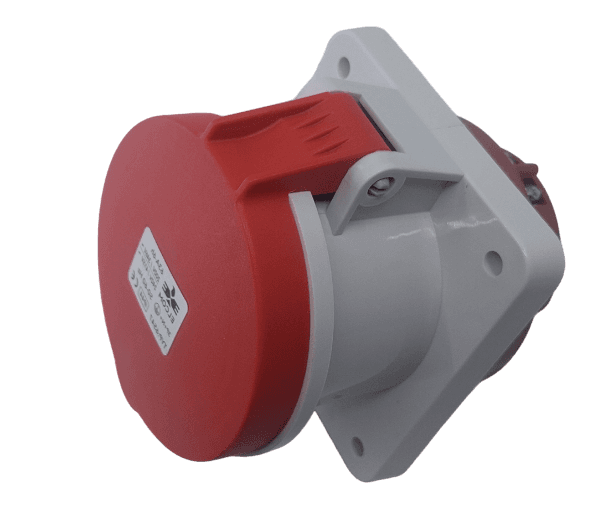

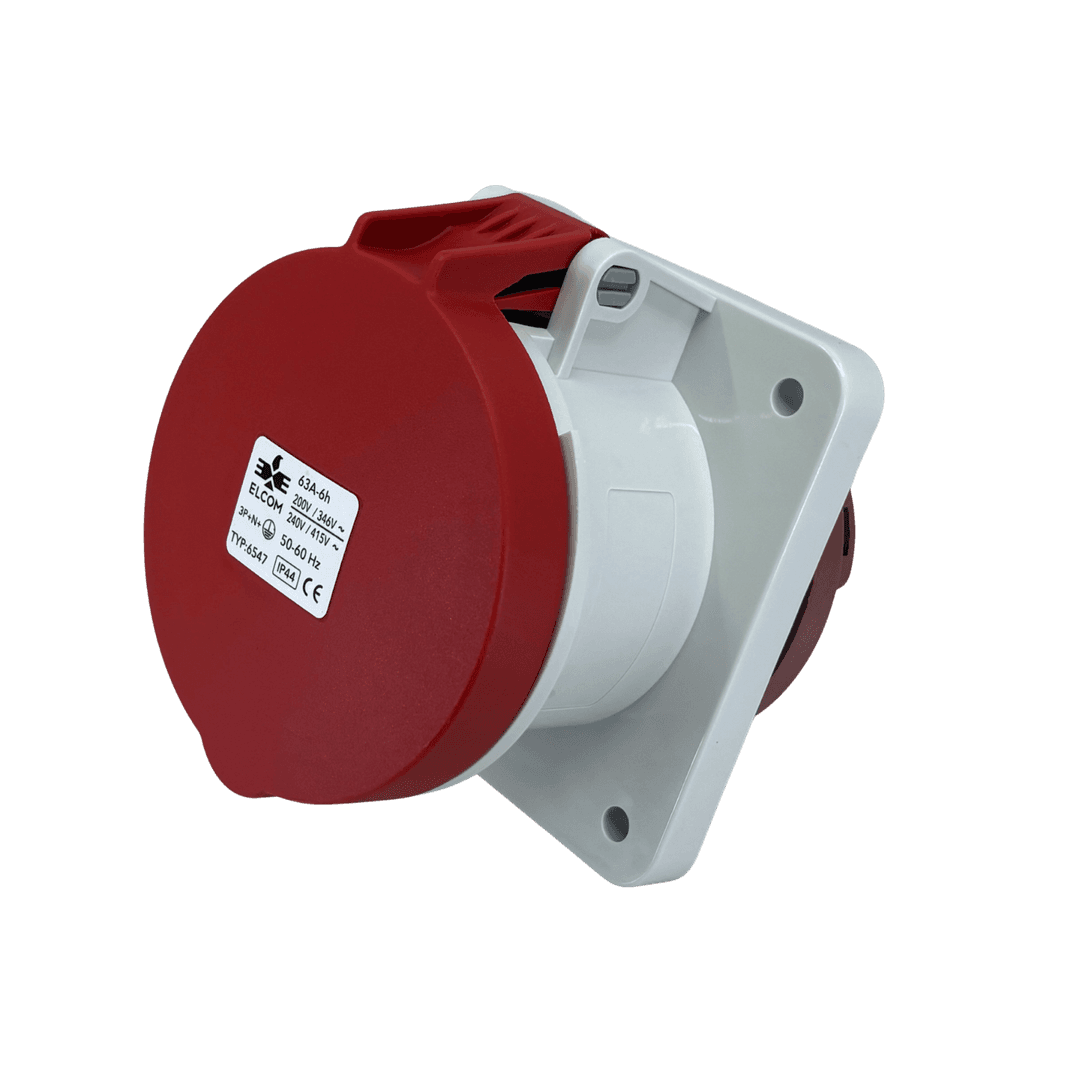

6547
6547
Specification
- Reference Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686
- Compliance Marking
CE
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Industrial
63A, 5 Pin(3P+N+E)
V/A Rating
63A, 200V/346V-240V/415V AC, 50-60Hz
Insulation Resistance At 500 V DC
100 M ohms Min
H.V>Break Down Test ( For 1 Minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw Type
Applicable Cable Size
10-16 sqmm
Earth Position
6h
Socket Angle
Straight
Pemissible Temperature
-20°C to +80°C
Weight
670 gms (Approximate)
Material
Material
Parameters
Specification
Body
Polyamide
Terminals
Brass
Terminal Screw
MS, Zinc Plated
Data Sheet
Elcom 6547 Industrial Socket Data Sheet
608 KB
