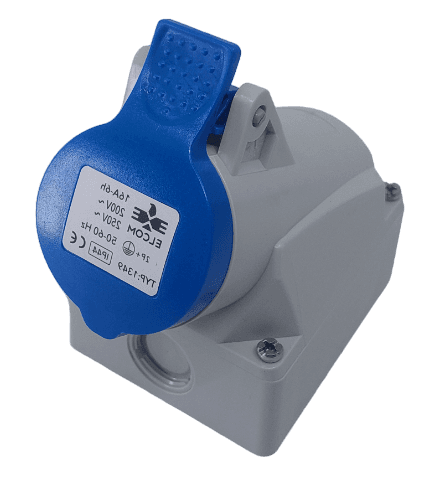

IPS 1349
IPS
1349
Specification
- Referance Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1666
- Compliance Marking
CE
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Surface Mount Socket Type
16A, 3 Pin(2P+E)
V/A Rating
16A, 200V-250V Ac, 50-60Hz
Insulation Resistance At 500 V DC
100 M ohms min
H.V Break Down Test (For 1 Min)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw Type
Applicable Cable Size
1.5-2.5 sqmm
Earth Position
6h
Plug Angle
25°
Permissible Temperature
-20°C to +60°C
Weight
215 Grams
Material
Material
Parameters
Specification
Body
Polyamide
Terminals
Copper Alloy
Terminal Screw
MS, Zinc Plated
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
IP Protection
IP 44
Reference Standard
IEC/EN 60309-1,IEC/EN 60309-2, UL-1686
Compliance Marking
CE
Data Sheet
Elcom 1349 Industrial Socket Data Sheet
609 KB
