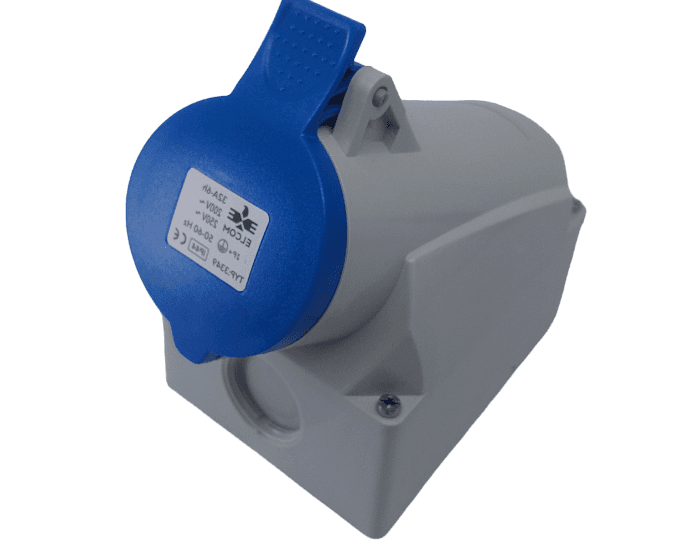

IPS 3349
IPS
3349
Specification
- Reference Standard
IEC/EN 60309-1. IEC/EN 60309-2, UL-1686
- Compliance Marking
CE
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Surface Mount Socket Type
32A, 3 Pin(2p+E)
V/A Rating
32A, 200V-250V AC, 50-60HZ
Insulation Resistance At 500 V DC
100 M ohms min
H.V Break Down Test(For 1 Min)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw Type
Applicable Cable Size
4-6 Sqmm
Earth Position
6h
Plug Angle
25°
Permissible Temperature
-20° to +60°C
Weight
426 grams (Approximate
Material
Material
Parameters
Specification
Body
Polyamide
Terminals
Copper Aloy
Terminal Screw
MS, Zinc Plated
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
IP Protection
IP 44
Terminals
Copper Alloy
Terminal Screw
MS, Zinc Plated
Data Sheet
Elcom 3349 Industrial Socket Data Sheet
615 KB
