Products>Electromechanical Components>Switches>Push button switch>PBS-3
esrseries

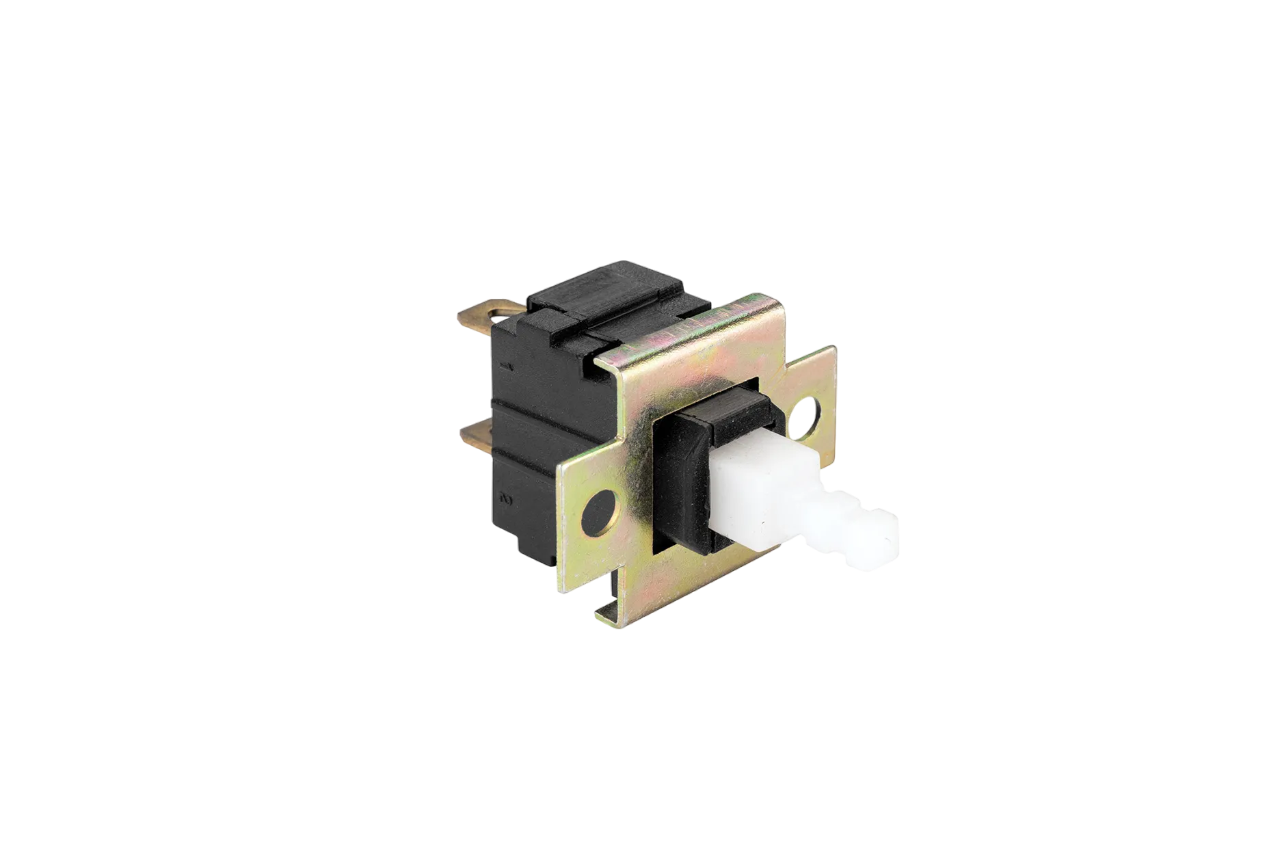

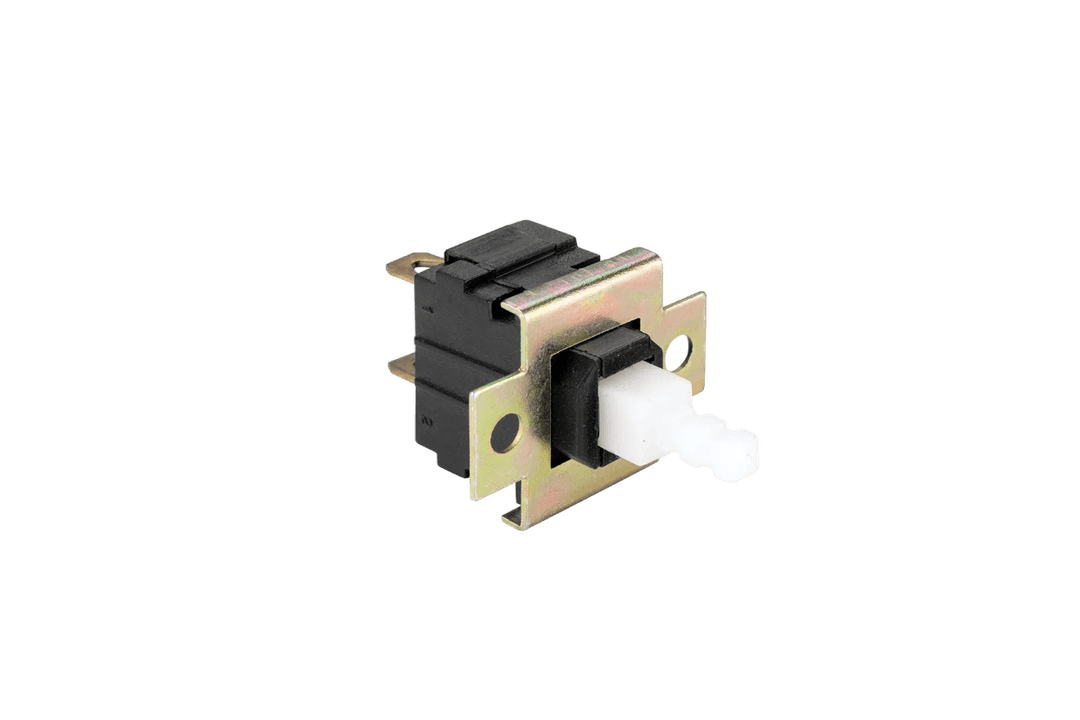

PBS-3

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    IEC-61058-1

  • Approval

    CE, RoHS (On Request)

Specification
starIcon

Electrical
characteristics

Parameters
Specification
Type
Momentary/Latched
Contact Resistance(Initial)
10 m Ohms Max.
Insulation Resistance at 500 V DC
100 M Ohms Min
H.V.Break Down Test(For 1-Minute)
4 KV ( Pole To Body)
H.V.Break Down Test(For 1-Minute)
1 KV ( Pole To Pole)
Mounting
Panel, screw-type
Terminals
Solder-type / Fast-on 4.80x0.80
Electrical Life
50,000 Cycles
Mechanical Life
1,00,000 Cycles
Operating Force
700 +/-150 gms.
starIcon

Operating/Functional
Characteristics

Parameters
Specification
With/Without Load
-25°C to +85°C
For Soldering
270°C for 5 Sec Max.
starIcon

Material

Parameters
Specification
Body/cover
Nylon
Actuator
Delrin white
Terminals
Brass
starIcon

Reference
Standard

Parameters
Specification
Reference Standard
IEC-61058-1
Approval
CE, RoHS (On Request)
Download PDF
PDF
PBS-3 Data Sheet
249 KB
