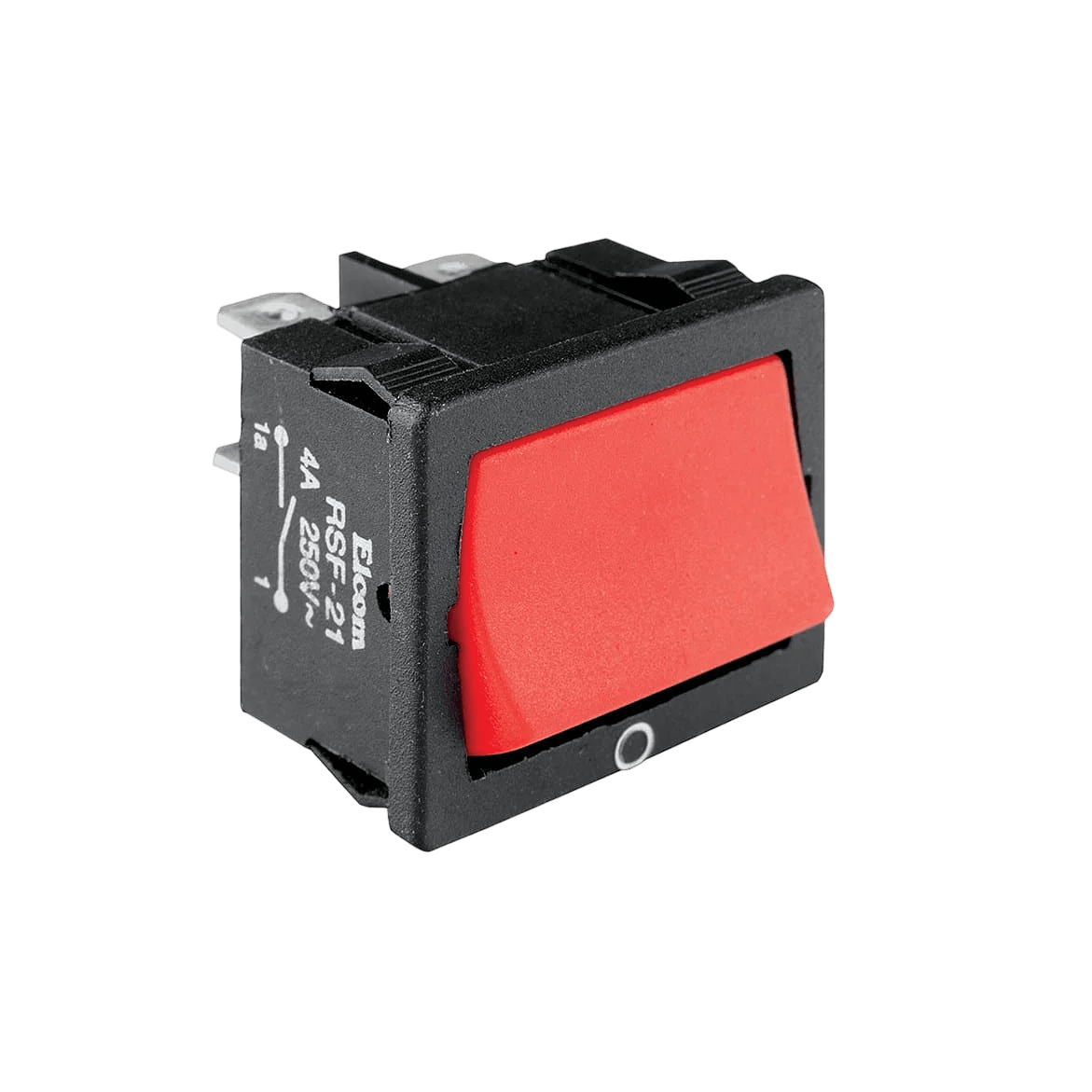

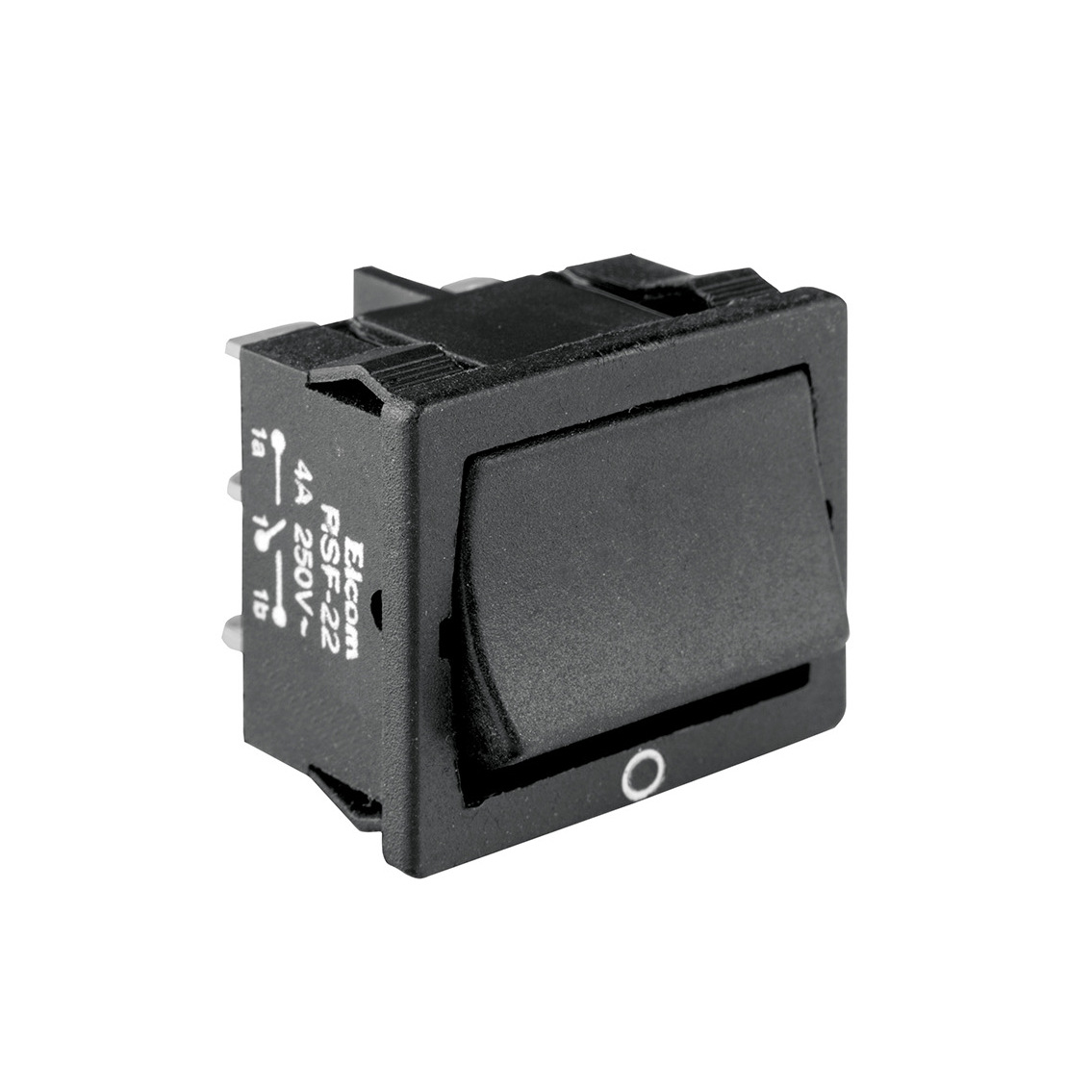

- RSF-21-7-SERIES RSF-22-7-SERIES
Products>Electromechanical Components>Switches>Rocker switch>RSF-21-7-SERIES RSF-22-7-SERIES
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type
Rocker switch
Panel Thickness
Refer Panel Cut out table
V/A Rating
4A /6A,250 VAC
Contact Resistance (Initial)
10 mohms. Max.
Insulation Resistance at 500 V DC
100 Mohms Min.
H.V.Break Down Test(For 1-Minute)
1 KV AC
Mounting
Panel, Snap-in type
Terminals
Solder-type or Snap-on 4.80x0.8
Life (With load)
10,000 Cycles Min.
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
With/Without Load
-25°C to +85°C
For Soldering
270°C for 5 Sec Max.
Material
Material
Parameters
Specification
Body
Nylon
Knob
Nylon : Red, Black
Terminals
Brass/Copper, Silver plating
Contacts
Silver & Copper,Silver plating
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IEC-1058-1,UL-1054
Features
Features Of RSF-21-7-SERIES RSF-22-7-SERIES
Features
Of
RSF-21-7-SERIES
RSF-22-7-SERIES
Range available in various electrical configurations like SPST, DPST, DPDT etc.
Rockers available in various colours including illuminations.
Gold plated elements also available.
Availability in Fast-on terminal compatibility.
Data Sheet
Data Sheet Of RSF-21-7-SERIES RSF-22-7-SERIES
252 KB
