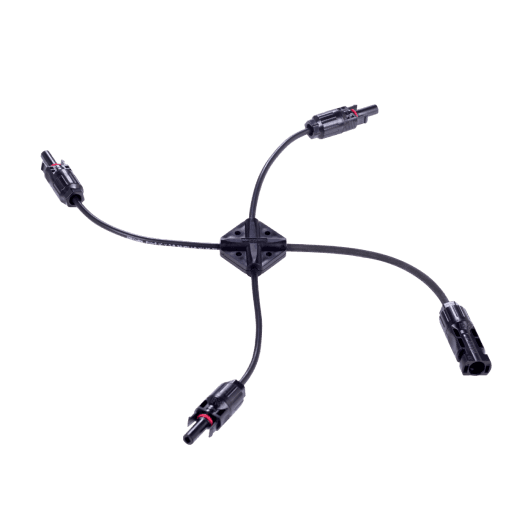

Products>Solar Connectors>PV Branch Connector>ESP-PC-X (PLUS BRANCH CONNECTOR)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Current Rating
20A - 30A
Voltage Rating
1000/1500 Vdc
Operating
Operating
Parameters
Specification
operating and functional characteristics
-40°C to +85°C
Flammability Rating
UL94V-0
Pin Dimensions
ø 4.0 mm
IP Rating
IP68 (IEC 60529)
Material
Material
Parameters
Specification
Body & / or Other Parts
PPO
Color (Standard)
Black
Current Carrying Parts
Cu Alloy, Tin Plating
Standard and Approvals
Standard
and
Approvals
Parameters
Specification
Reference Standard
EN-50521 : 2008
Data Sheet
ESP-PC-X (Plus Branch Connector) Data Sheet
296 KB
