ESC-4-UW-X
ESC-4-UW-X
Reference Standard And Approvals
- Reference Standard
IEC 62852:2014
- Approvals
TUV
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

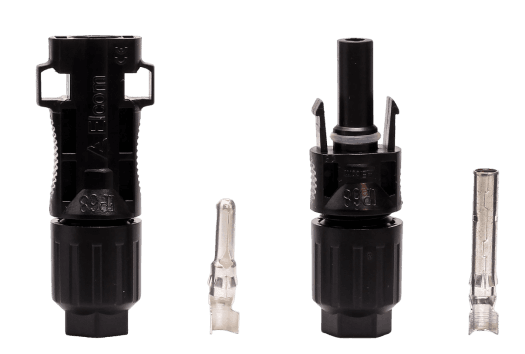

Ø4mm PConnector With Safety Window
V/A Rating
4 & 6sqmm : 30A 2.5sqmm : 25A, 1500V DC
Test voltage
8000V AC(1min)
Typical contact Resistance
<0.35mOhms
Degree of protection (Mated)
IP68(IEC 60529)
Operating / Functional characteristics
Operating
/
Functional
characteristics
Parameters
Specification
Flammability class
UL 94, V-0
Insulation material
PP0
Protection class
II
Over voltage category
Category III
Relative Humidity (%)
85%
Temperature range
-40°C TO +85°C
Upper limiting temperature
105°C
Insertion force (male Female hsg.)
≤50N
Withdrawal force (male Female hsg.)
≥100N
Material
Material
Parameters
Specification
Contact material
Copper/Copper Alloy,Silver plated
Cable size
2.5mm, 4mm & 6mm 2
Rated Impulse Voltage
16KV
Application Class
A
Pollution Degree
3
Pin dimensions
Ø4.0mm
Stripping Length
8 mm.
Sealing Material
Silicon Rubber
Minimum Creepage Distance
Contact to contact not applicable
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 62852:2014
Approvals
TUV
Data Sheet
Elcom ESC-4-UW Data Sheet
670 KB
