Specification
Parameter
Parameter
Parameters
Specification
Product Category / Description
Rotary Switch - Binary Coded
Mounting Style
Panel Mounting
Indexing
22.5°
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
V/A Rating
50 VAC / DC 150mA
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
250 VAC
Contact Resistance (Initial)
50 m ohms Max
Electrical Life
10,000 Cycles Min.
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C to +85°C
For Soldering
270° C, 5 seconds max.
Mounting
Screw - Type
Mounting Style
3.00 mm Max
Terminals (Standard)
Solder Type
Material
Material
Parameters
Specification
Body
Nylon / PBT
RoHS compliant
Yes
Colour (Standard)
White / Black
Current Carrying Parts
Cu Alloy - Silver Plating
Shaft Colour
Black
PCB
Glass Epoxy - Gold Plated
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IEC-61058-1
CE Marking
Yes
Features

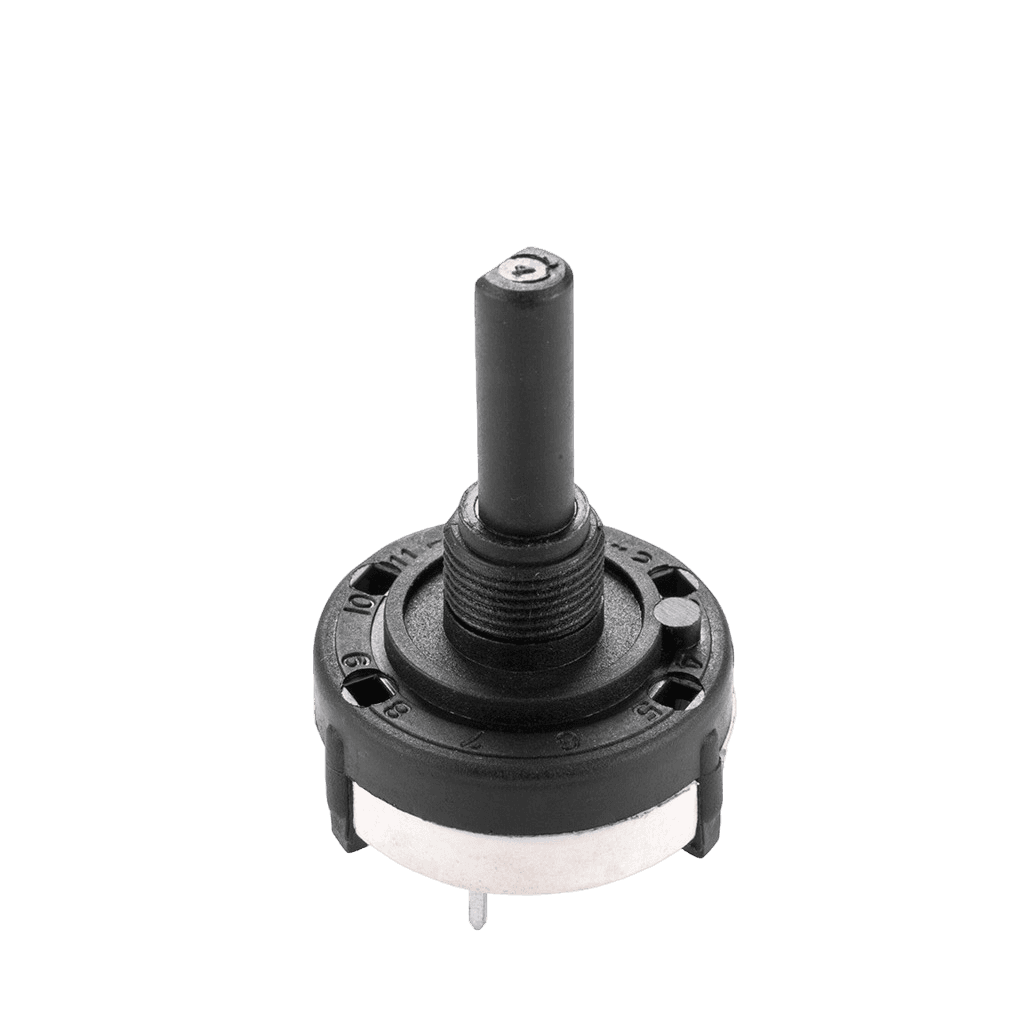

Features of ERS-2015
Features
of
ERS-2015
Available in various & / or customized options wrt Indexing angles.
Standard / Customized shaft dimensions and colours.
Data Sheet
Elcom ERS-2015 Data Sheet
299 KB
