Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification

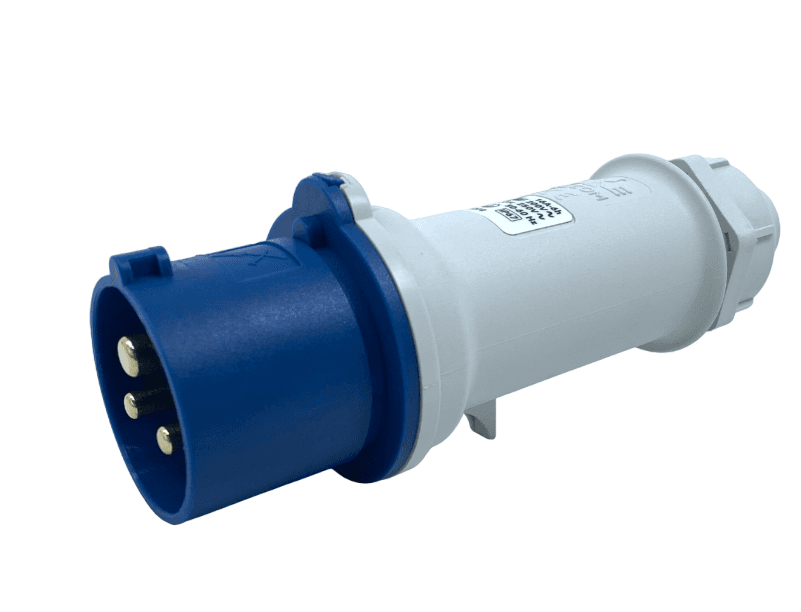

Industrial Plug
16A, 3 Pin (2P+ E)
V/A Rating
16A, 200-250 VAC, 50 - 60Hz
Insulation Resistance At 500 V DC
100 M ohms min
H.V.Break Down Test (For 1-Minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Terminals
Screw-type
Applicable Cable Sizes
1.5 - 2.5 Sqmm
Earth Position
6h
Plug Angle
Straight
Permissible Temp.
-25°C TO +90°C
Tightening Torque for Screw
0.9 Nm Max.
Material
Material
Parameters
Specification
Body
Polyamide , V2
Terminals
Copper Alloy
Terminal screws
MS, Zinc Plated
Weight
140 gm (Approximate)
Reference Standard and Approvals
Reference
Standard
and
Approvals
Parameters
Specification
IP Protection type
IP44
Reference Standard
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686
Compliance Marking
CE, RoHS Complied
FEATURES
Tailored precision and compliance
Tailored
precision
and
compliance
High impact & heat resistant Polyamide material
Terminal with Double Screws, zinc plated
Glow wire Index: 850° C
UL-94 V-2 Flame retardant material
Cable gland for external cable grip
Download PDF
Elcom IPS 1342 Datasheet
466 KB
