esrseries

IPS
1577

Specification
certiicon1
certiicon1
  • Reference Standard

    IEC 60309-1, IEC 60309-2, UL-1686

  • Compliance Marking

    CE, RoHS Complied

Specification
starIcon

Electrical
Characteristics

Parameters
Specification

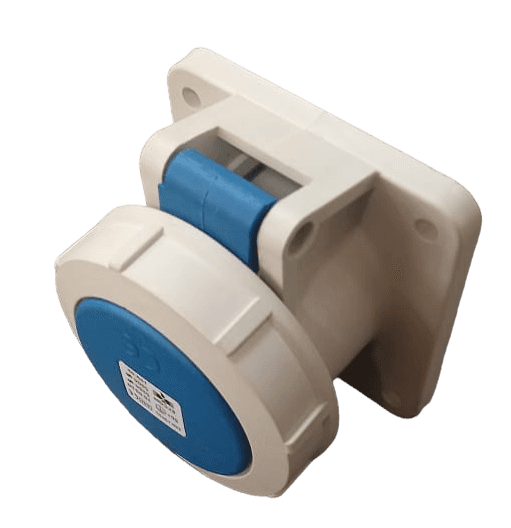

Panel Mount Straight Socket Type
16A, 5 Pin (3P+ N+ E)
V/A Rating
16A, 200V/346V-250V/415V AC, 50 - 60Hz
Insulation Resistance At 500 V DC
100 M ohms min
H.V.Break Down Test (For 1-Minute)
2 KV AC
starIcon

Operating
and
Functional
Characteristics

Parameters
Specification
Terminals
Screw-type
Applicable Cable Sizes
1.5 - 2.5 Sq. mm
Earth Position
6h
Plug Angle
Straight
Permissible Temp(With/Without Load)
-25°C TO +90°C
Tightening Torque for Screw
0.9 Nm Max.
Weight
233 gm (Approximate)
starIcon

Material

Parameters
Specification
Body
Polyamide , V2
Terminals
Copper Alloy
Terminal screws
MS, Zinc Plated
starIcon

Reference
Standard
and
Approvals

Parameters
Specification
IP Protection type
IP44
Reference Standard
IEC 60309-1, IEC 60309-2, UL-1686
Compliance Marking
CE, RoHS Complied
Download PDF
PDF
Elcom 1577 Industrial Plug Data Sheet
474 KB
