Specification
Electrical Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|

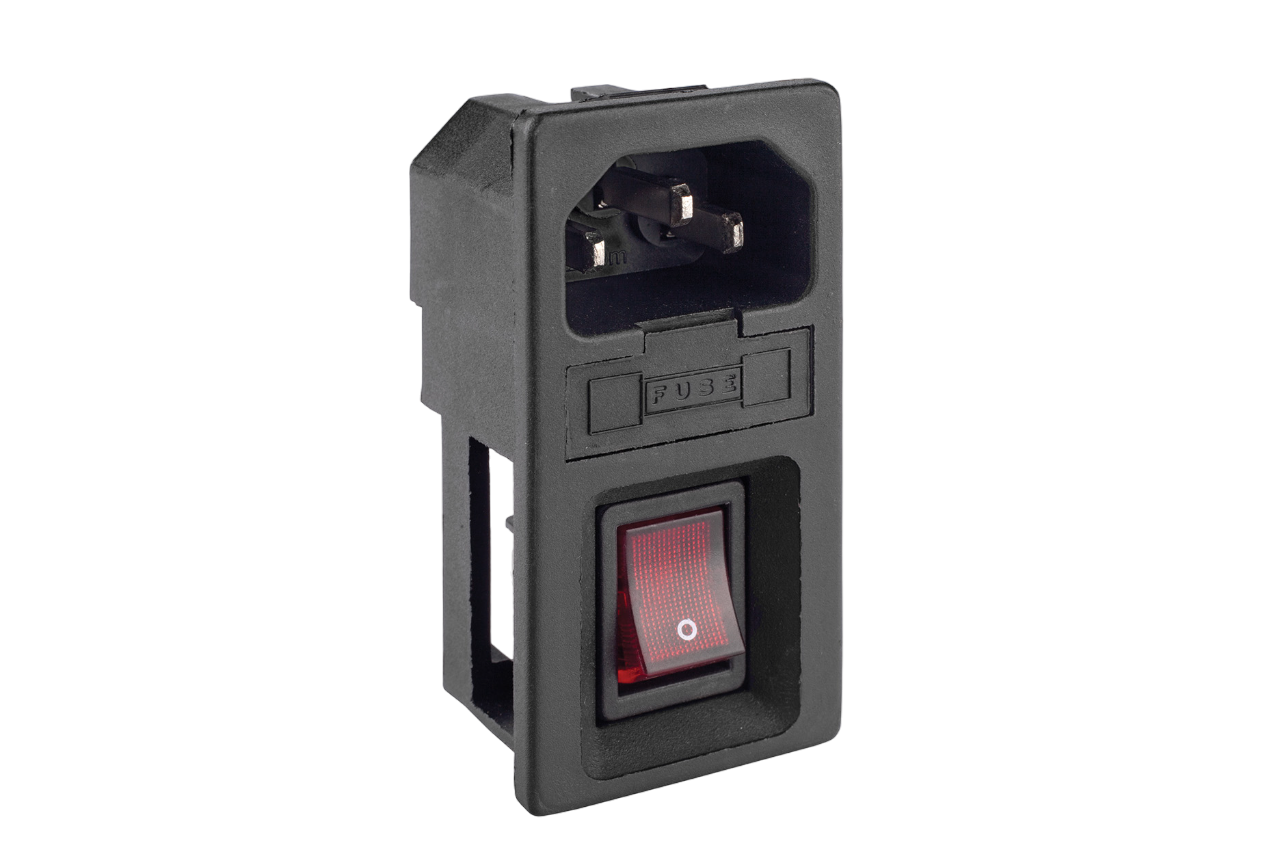

| 1 | Product Category / Description | IEC INLET |
| 2 | V/A Rating | 10A 250V AC |
| 3 | Switch Rating | 4A : Standard, 6A , 10A (On request, Please refer ordering code) |
| 4 | Contact Resistance (Initial) | 10 mohms max. |
| 5 | Insulation Resistance At 500 V DC | 1000 Mohms min |
| 6 | H.V.Break Down Test (For 1-Minute) | 2 KV AC |
Operating / Functional Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Mounting | Panel, Snap-in type |
| 2 | Terminals | Solder-type or Fast-on |
| 3 | Panel Thickness | 0.8 to 2.50 |
| 4 | Permissible Temp. With/Without Load | -25°C To 70°C |
| 5 | Permissible Temp. For Soldering | 270°C for 5 Sec. Max. |
Material
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Body | Nylon-6, GF20%, V-2. |
| 2 | Terminals | Brass, Tin plating |
| 3 | Contacts | Connector-Brass/Copper Tin plating, Switch-Silver plating. |
Reference Standards / Safety Approvals
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Reference Standards | IEC 60320-1, IEC 61058-1, IEC 60127-6, CSA : C22.2 No.60320-1-11 |
| 2 | Approvals | cCSAus |
| 3 | Compliance Marking | CE, RoHS |
