Features
- Appliance Inlets / Outlets available in wide range of current ratings
- Wide range of mounting styles and terminals to suit various design requirements.
- Components available according to IEC & UL standards.
- Wide range of Safety approvals from UL,CSA,VDE,CE etc
- Wide range of operating temperature - up to 125 Deg Centigrade.
- Pioneers of High Retention Force for the inlet, outlet components.
Product Drawings
Specification
Electrical Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|

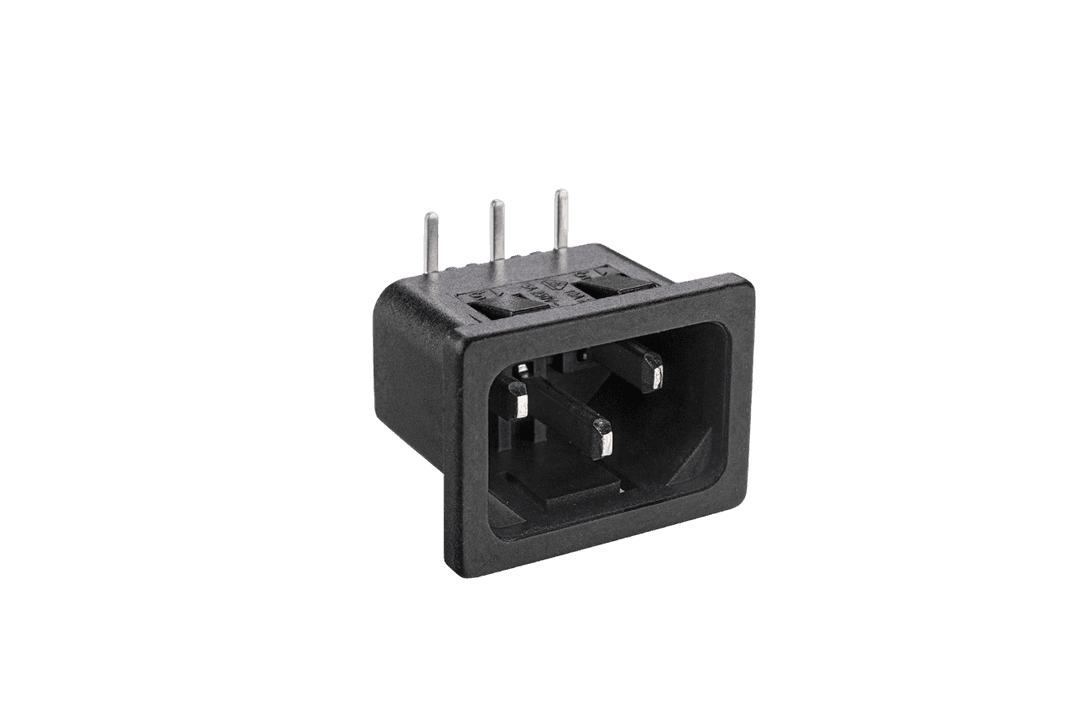

| 1 | Product Category / Description | IEC INLET |
| 2 | V/A Rating | "10A (VDE ) 15A (UL)"/ 250V AC |
| 3 | Contact resistance (Initial) | 10 mohms max. |
| 4 | Insulation resistance at 500 V DC | 1000 Mohms min. |
| 5 | H.V.Break down test (For 1minute) | 2 KV AC |
Operating / Functional Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Mounting | PCB OR Panel, Snap-in type |
| 2 | Terminals | Solder-type |
| 3 | Permissible Temp. With/Without Load | 0 To 65°C (UL){* Also available up to 125°C on request for UL only} 0 To 70°C (VDE) |
| 4 | Permissible Temp. For Soldering | 270°C for 5 Sec. Max. |
Material
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Body | Nylon-6, GF20%, V-2 |
| 2 | Terminals | Brass, Tin plating |
| 3 | Contacts | Brass, Nickel plating |
Reference Standards / Approvals
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Reference standards | IEC 60320-1, IEC 60320-3, UL-498, CSA : C22.2 No.182.3 |
| 2 | Approval | VDE, cULus |
| 3 | Compliance Marking | CE, RoHS |
