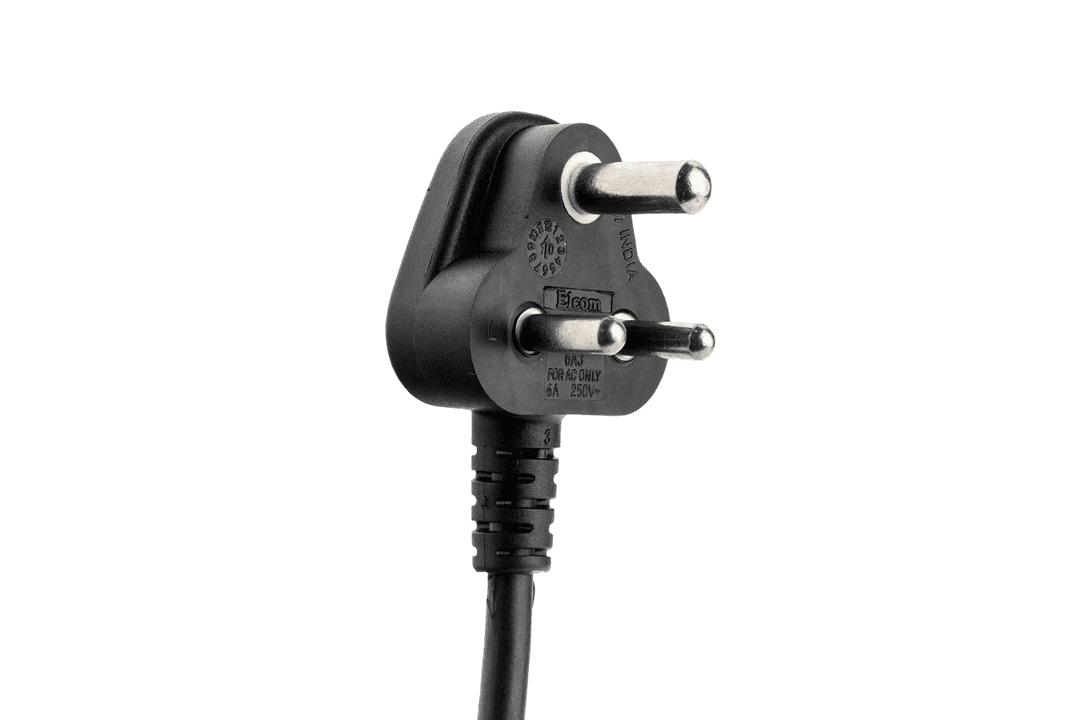

Specification
Electrical Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | V/A Rating | 6Amp 250V AC / 10Amp,250V AC |
| 2 | Insulation Resistance at 500 VDC | 100 M Ohms Min. |
| 3 | H.V.Break Down Test (For 1-Minute) | 1.5 KV AC. |
| 4 | Conductor Resistance | 39 Milliohms/Meter Maximum |
Operating/ Functional Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Permissible Temp. (With/Without Load) | -20°C TO 70°C |
| 2 | Length | As per customer requirement |
Material
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Cable | PVC |
| 2 | Conductors | Copper |
| 3 | Contacts | Brass, Nickel Plating |
Reference Standard/ Approvals
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Reference Standard | IS-1293,IEC-60884-1,IEC-60799,IES-60227,IEC-60320-1 |
| 2 | Compliance Marking | CE, RoHS,ISI ( On Request ) |
