Product Drawings
Specification
Electrical Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|

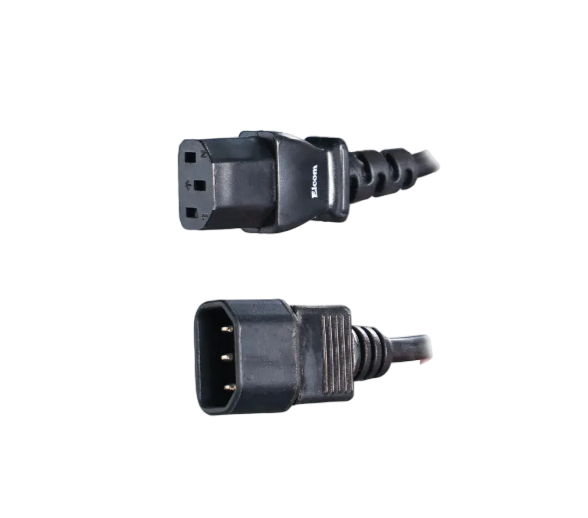

| 1 | Product Category / Description | Mains Cord with IEC connector combination |
| 2 | V/A Rating | 10Amp 250V AC (Max.) |
| 3 | Insulation Resistance at 500 V DC | 100 M Ohms Min. |
| 4 | H.V.Break Down Test (For 1-Minute) | 1.5 KV AC. |
Operating/Functional Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Permissible Temp. (With/Without Load) | -20°C TO 70°C |
| 2 | Length (L), Meters | As per Requirement |
| 3 | Colour | Black (standard), Red/Blue/White |
Material
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Inlet & Outlet Body | Polyamide |
| 2 | Cable & Sleeve | PVC |
| 3 | Conductors | Copper |
| 4 | Conductor (Size) | As per Requirement |
| 5 | Contacts | Brass, Nickel Plated |
Reference Standards/Approvals
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Reference Standards | IEC-60320-1, IEC-60320-3, IEC 60799 |
| 2 | Compliance Marking | CE, RoHS ( On Request ) |
