Product Drawings
Specification
Parameter
| Sr. No. | Parameters | Specification |
|---|---|---|

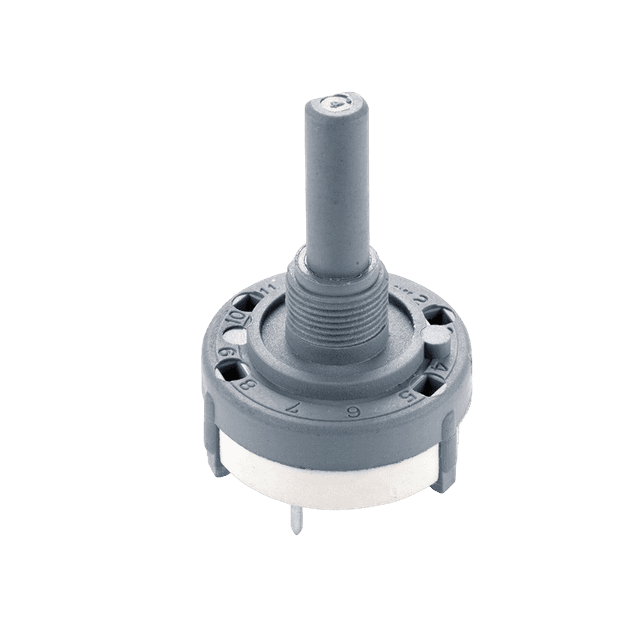

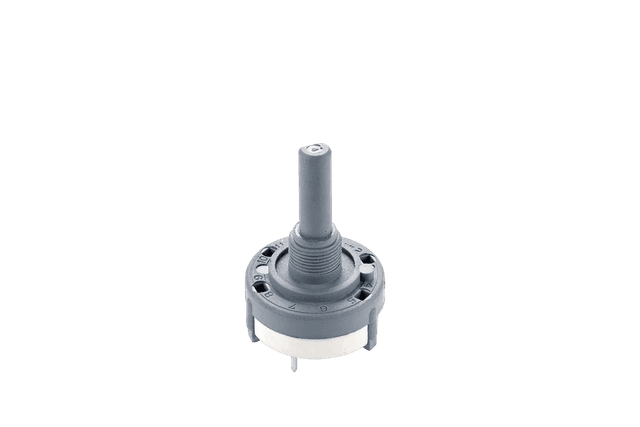

| 1 | Product Category / Description | Rotary Switch - Binary Coded |
| 2 | Mounting Style | Panel Mounting |
| 3 | Indexing | 22.5° |
Electrical Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | V/A Rating | 50 VAC / DC 150mA |
| 2 | Insulation Resistance at 500 VDC | 1000 M ohms Min. |
| 3 | H.V.Break Down Test (For 1-Minute) | 250 VAC |
| 4 | Contact Resistance (Initial) | 50 m ohms Max |
| 5 | Electrical Life | 10,000 Cycles Min. |
Operating / Functional Characteristics
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Operating Temp. Range | -20°C to +85°C |
| 2 | For Soldering | 270° C, 5 seconds max. |
| 3 | Mounting | Screw - Type |
| 4 | Mounting Style | 3.00 mm Max |
| 5 | Terminals (Standard) | Solder Type |
Material
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Body | Nylon / PBT |
| 2 | RoHS compliant | Yes |
| 3 | Colour (Standard) | White / Black |
| 4 | Current Carrying Parts | Cu Alloy - Silver Plating |
| 5 | Shaft Colour | Black |
| 6 | PCB | Glass Epoxy - Gold Plated |
Reference Standards / Safety Approvals
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Reference Standard | IEC-61058-1 |
| 2 | CE Marking | Yes |
Annexure
Standard Variety
Standard Variety
| Sr.no. | With Reference To | Available Option | RoHS | Safety approvals & / Or Marking |
|---|---|---|---|---|
| 1 | Plastic Resin | Nylon | RoHS | |
| 2 | Rating | 150 mA | RoHS |
Other Customized Options Available On Request , Subject To MOQ & Commercial Acceptance.
| Sr.no. | With Reference To | Available option | RoHS/Non RoHS | Safety approvals & / Or Marking |
|---|---|---|---|---|
| 1 | Plating On Curtsrrent Carrying Parts | Silver/Gold Plated |
